A Brief History Of The 1GR-FE

Toyota’s 1GR-FE is a 4.0-liter V6 gasoline engine that debuted in 2002. It first appeared in the Toyota 4Runner, Hilux Surf, and Land Cruiser Prado, developed as a replacement for the older 3.4-liter 5VZ-FE to meet increasing power, efficiency, and emissions compliance demands.

The 1GR-FE quickly gained a reputation for its robust design and versatility, finding its way into many Toyota and Lexus vehicles up to the present day. The stock engine produces between 237 and 267 horsepower in its various iterations, making it a capable powerplant for a wide range of applications.

Its aluminum block, cast iron cylinder liners, and forged steel crankshaft combine a lightweight design with heavy-duty durability. The longitudinal mounting makes it suitable for use in both RWD and AWD vehicles.

After it proved itself on the market, Toyota integrated it into more of its truck/SUV lineup, including the Tacoma, FJ Cruiser, and various Land Cruiser models.

In the following years, it gained significant updates, notably introducing Toyota’s Dual VVT-i (Variable Valve Timing with intelligence) in 2009, improving performance and efficiency. Whether in its original or updated form, the 1GR-FE earned a reputation as a capable and versatile powerplant, but it does have its share of known issues, which we’ll explore in detail later in this guide.

Despite the updates, Toyota still uses both engine versions today, with some minor alterations on the VVT-i engine, which continues to power the Toyota Hilux and Toyota Land Cruiser 70 in some markets. The later dual VVT-i variant is still available in the Toyota Fortuner and the Land Cruiser.

In this article, we’ll take a look at the engine’s specs, applications, strengths, weaknesses, and tuning potential. If you wish to skip to a specific section, please use the menu above.

1GR-FE Engine Specs

Toyota’s 1GR-FE is a 60-degree 4.0-liter V6 engine with a unique design that balances performance and durability. Its block is lightweight aluminum, and the cylinders have sturdy cast iron liners, providing strength and efficiency. The open-deck design features water passages between cylinders, which helps maintain consistent temperatures during operation.

There’s also a forged steel crankshaft and aluminum pistons with special coatings to reduce friction.  Toyota engineers the intake system and combustion chamber for optimal fuel delivery and burning, particularly in later versions with dual variable valve timing (Dual VVT-i). These design elements contribute to its reputation for reliability, making it a potential option for performance enthusiasts looking to increase their power output.

• Displacement: 3,956 cc (4.0L)
• Bore x Stroke: 94 mm × 95 mm (3.70 in × 3.74 in)
• Valvetrain: DOHC, four valves per cylinder

Early VVT-i (2002-Present day)

• Compression Ratio: 10.0:1
• Fuel System: Sequential multi-point fuel injection
• Power: 237-240 hp @ 5,200 rpm
• Torque: 266-278 lb-ft @ 3,800 rpm
• Features: VVT-i on intake camshaft only

Updated Dual VVT-i (2009-Present day)

• Compression Ratio: 10.4:1
• Fuel System: Sequential multi-point fuel injection
• Power Output: 267 hp @ 5,600 rpm
• Torque: 278 lb-ft @ 4,400 rpm
• Features: Dual VVT-i (intake and exhaust camshafts)

Notable updates

• 2009: Introduction of Dual VVT-i, redesigned cylinder heads, roller rocker arms with hydraulic lash adjusters.
• Toyota Racing Development (TRD) produced a supercharger kit for the 1GR-FE and offered it on the TRD models of the Toyota Tacoma, 4Runner, and FJ Cruiser but later discontinued it.

Which Cars Came With The 1GR-FE?

Toyota has used the engine in various markets worldwide from 2002 to the present day, including North America, Europe, Asia-Pacific, and the Middle East.

It’s worth noting that the exact years of availability may vary slightly depending on the specific market and model. Additionally, some of these vehicles received updated versions of the 1GR-FE over time, such as the Dual VVT-i version introduced in 2009.

Toyota vehicles with VVT-i (2002-Present day):

• Toyota 4Runner/Hilux Surf (GRN210/215) – 2002-2009
• Toyota Land Cruiser (GRJ200) – 2007-2011
• Toyota Land Cruiser Prado (GRJ120/121/125) – 2002-2009
• Toyota Tacoma (GRN225/245/250/265/270) – 2004-2015
• Toyota Hilux (GGN10/20) – 2005-2015
• Toyota Tundra (GSK30) – 2005-2006
• Toyota Tundra (GSK50/51) – 2006-2009
• Toyota Fortuner (GGN50/60) – 2005-2015
• Toyota FJ Cruiser (GSJ10/15) – 2006-2009
• Toyota Land Cruiser 70 – 2009-Present day
• Toyota Hilux – 2015-Present day

Toyota vehicles with Dual VVT-i (2009-Present day):

• Toyota 4Runner (GRN280/285) – 2009-2024
• Toyota FJ Cruiser – 2009-2022
• Toyota Tundra (GSK50/51) – 2011-2014
• Toyota Land Cruiser (GRJ200) – 2012-2021
• Toyota Land Cruiser Prado (GRJ150/150R/155) – 2009-2023
• Toyota Fortuner – 2015-Present day
• Toyota Land Cruiser (GRJ300) – 2021-Present day

Lexus vehicle with Dual VVT-i (2012-2023):

• Lexus GX 400 (GRJ150) – 2012-2023

How Does The 1GR-FE Compare To The 2GR-FE?

Despite the similarity in the names, Toyota’s 2GR-FE 3.5-liter V6 engine isn’t designed as a direct replacement for the 1GR-FE 4.0-liter V6. Instead, both engines coexisted in Toyota’s lineup, serving different purposes and vehicle applications.

While the 1GR-FE features a larger 4.0L displacement compared to the 2GR-FE’s 3.5L, the 2GR-FE has become a more popular choice for aftermarket tuning and drifting applications for several reasons:

Advanced design

The 2GR-FE featured more modern engineering, including Dual VVT-i (variable valve timing on both intake and exhaust camshafts) from the start, while it wasn’t integrated into the 1GR until 2009. The 1GR was engineered for durability and torque, making it more suitable for off-road and towing applications, while the 2GR prioritized power output and efficiency.

Stock power output

Despite its smaller displacement, the 2GR produces more power in stock form (up to 314 hp vs. 267 hp for the 1GR) thanks to its more efficient design, offering greater tuning potential.

Weight

The 2GR is approximately 3kg lighter than the 1GR, offering benefits for performance applications. This weight reduction improves the power-to-weight ratio, enhances handling by reducing front axle weight, and increases overall efficiency.

Rev limit

The 2GR’s higher rev limit compared to the 1GR provides several advantages for performance and drifting. It extends the power band, allowing the engine to produce power over a wider range of RPMs, resulting in higher peak horsepower. The higher redline improves throttle response, which is crucial for precise control in drifting and allows for more effective engine braking.

Availability

The 2GR is used in a broader range of vehicles, including performance-oriented models, making it more readily available and familiar to tuners.

Aftermarket support

Due to its popularity, the 2GR has more aftermarket parts and tuning options. The 2GR has proven to be an excellent choice for forced induction, with several off-the-shelf supercharger kits developed for it.

Mounting configuration

The 1GR was designed for longitudinal mounting in rear-wheel and four-wheel drive vehicles, while the 2GR was used in transverse applications for front-wheel and all-wheel drive vehicles.

Overall reliability

Both engines are highly reliable, but the 1GR is better for heavy-duty applications. With proper maintenance, both engines can last well over 200,000 miles. However, the 1GR has more significant potential issues (which we’ll explore shortly) than the 2GR’s relatively minor problems.

1GR-FE Upgrades and Tuning

Given its design, it should be no real surprise that the 1GR-FE isn’t typically known for its tuning potential, engine swaps, or drifting, with most opting for the 2GR-FE instead. However, it has shown surprising potential when pushed to its limits.

Although the aftermarket support for some popular drift engines is nowhere near as extensive, options are still available. Toyota Racing Development (TRD) once offered a bolt-on supercharger kit for the Tacoma and FJ Cruiser, boosting power to around 300 horsepower, but these will be difficult to obtain given their rarity.

Thankfully, you can still find aftermarket supercharger and turbocharger kits designed specifically for the 1GR-FE. Popular choices include the Magnuson Supercharger System at $6,395.00 and the Bullet/Rotrex Supercharger kit at $9,990.00. These can significantly increase power output alongside supporting modifications like upgraded fuel injectors, a high-flow fuel pump, and a custom ECU tune.

Other popular bolt-on upgrades include cold air intakes, headers, and full exhaust systems to improve breathing and overall performance.

While the 1GR-FE can handle moderate power increases with bolt-on modifications, pushing for high horsepower numbers requires careful planning and significant investment. However, with its strong bottom end, it can be a surprisingly capable platform if you’re willing to put in the effort, but it certainly won’t come cheap.

View this post on Instagram



A post shared by 具志健士郎.jp (@kengushi)

If you have the cash to splash, you’ll likely be surprised by the 1GR-FE’s maximum potential when built correctly. Ken Gushi showed off his GR86 build in Formula Drift US. Meanwhile, Japanese drifter Yoichi Imamura competed in the D1 Grand Prix series with a 986-horsepower 1GR-FE. We’ll take a deeper dive into these next.

1GR-FE Drift Cars

While the Toyota 1GR-FE engine isn’t typically associated with drifting, two notable pro drivers have showcased its potential in high-level competition, proving the capabilities of the truck-oriented V6, albeit with extensive modifications.

Ken Gushi’s 1,000 HP 1GR-FE Toyota GR86

Formula Drift pro driver Ken Gushi surprised the drift community by choosing the Toyota 1GR-FE from an FJ Cruiser for his latest GR86 build. Gushi opted for this engine over more common choices, such as the 2GR-FE, primarily for its displacement. The 4.0L V6 is the largest V6 that Toyota offers in the U.S., providing a solid foundation for his big-power goals.

The build features extensive modifications, including strengthened internals, custom engine management, and a sophisticated cooling system to handle the increased heat generated during drift competitions. When properly built, Gushi’s choice demonstrates the 1GR-FE’s ability to handle extreme power levels, but he does admit that it didn’t come easy, especially given the lack of off-the-shelf aftermarket options.

Gushi’s team implemented a custom twin-turbo setup, utilizing two Borg Warner turbos to force-feed the engine. This setup and an anti-lag system allow quick spooling and immediate power delivery.

What’s impressive about Gushi’s build is the amount of power they’ve extracted from the 1GR while maintaining reliability. Despite pushing the engine to produce around 1,000 horsepower, the build still utilizes stock camshafts, and Gushi is already prepping his next 1GR, which he intends to get up to 1,200 horsepower!

What Made Gushi Choose The 1GR-FE?

In the video, Gushi states: “Obviously, the 2J is extremely outdated. We want to try something different and challenging that’ll kind of hopefully get us through the next couple of years with parts that are still available through dealerships.” This ensures that his team can source parts more easily, potentially giving them an edge in long-term reliability and maintenance.

Moreover, the aluminum block of the 1GR-FE offers a significant weight advantage over iron-block engines like the 2JZ, making the front end of the car lighter and potentially improving handling characteristics.

Despite the benefits, one of the biggest challenges Gushi’s team faced was the lack of aftermarket support, which necessitated the creation of many custom parts from the ground up. A prime example is the intake plenum, designed to handle an impressive 30 psi of boost pressure.

Gushi’s build demonstrates that with enough engineering skill and creativity, even an engine primarily designed for trucks and SUVs can be transformed into a competitive drift powerplant. It’s also helped put the 1GR-FE back on the map.

Yoichi Imamura’s 986 HP 1GR-FE Toyota GT86

We’re unsure whether Gushi’s build was inspired by Yoichi Imamura’s earlier build, which he initially showcased in the 2016 Japanese D1 Grand Prix series, but there are certainly plenty of similarities.

One of the main differences with Imamura’s build is that the engine is stroked to 4.1 liters, increasing its displacement from the original 4.0 liters. Given his displacement focus, it’s surprising that Gushi didn’t opt for the same upgrade, even if he did manage to extract more power, but it may have come down to sponsorship restrictions.

CP pistons and Carrillo connecting rods are at the heart of Imamura’s build with TODA Racing camshafts. Two Garrett GTX3067R turbochargers force-feed the engine, resulting in another bonkers output of 986 horsepower (1,000 PS).

The engine runs on Sunoco 260 GT Plus fuel, a high-octane racing fuel rated at 104 octane (110 RON). This specialized fuel allows more aggressive tuning and helps prevent detonation under the extreme boost pressures required to generate such high power figures.

Power transfer is handled by a Quaife six-speed sequential transmission paired with an Ogura Racing Clutch 1000F. This drivetrain setup is designed to handle the engine’s massive torque output while providing the quick shifts necessary in competitive drifting.

Both builds demonstrate the 1GR-FE’s potential when taken to the extreme. While it’s far removed from its humble origins as a truck engine, it showcases the strength of Toyota’s design. Combined with Toyota’s reputation for reliability, you may think that the 1GR is flawless, but that’s unfortunately not the case, which we’ll explore next.

1GR-FE Reliability & Common Issues

The 1GR-FE receives mixed reviews regarding its reliability. While many owners praise its durability, reporting 200,000+ miles without major issues, others express concerns about its suitability for work trucks or large family SUVs. We’ve found that reliability can vary significantly based on maintenance history and usage patterns.

Generally, it’s considered more reliable than the 3.5L 2GR-FE, but potential buyers should be aware of common issues, especially in higher-mileage vehicles. Here are some of the most common problems that should be considered.

Head Gasket Failure

A significant concern is potential head gasket failure, typically occurring around 150,000 miles. While not as widespread as in some other Toyota engines, it remains a notable issue. Symptoms include coolant loss, overheating, and white exhaust smoke.

Repair costs for head gasket replacement typically range from $1,500 to $2,500. This repair, while expensive, is often worthwhile given the engine’s overall longevity potential.

Water Pump

The water pump is a known weak point in the 1GR-FE, typically lasting only 40,000 to 60,000 miles. Many owners report failures within this range, making it a common maintenance item.

Replacement costs usually fall between $500 and $800. Due to its critical role in preventing overheating, many mechanics recommend preventative replacement around 50,000 miles. Attention to cooling system issues is crucial to avoid more severe and costly engine damage.

Engine Block Thin Walls

A unique aspect of the 1GR-FE is its engine block with thin, cast-in cylinder liners. While contributing to lighter weight, this design makes it impossible to rebore the cylinders. The entire engine block may need replacement if a cylinder wall becomes damaged or excessively worn.

A used engine typically costs between $2,000 and $4,000, not including labor for installation. This limitation is particularly relevant for engines approaching or exceeding 200,000 miles.

Oil Consumption

Some owners report increased oil consumption as the 1GR ages, particularly past 100,000 miles. The severity varies; some maintain good oil levels, while others require frequent top-ups between changes.

In severe cases, piston ring replacement may be necessary, costing between $2,000 and $4,000. Regular oil level checks and using high-quality oil can help mitigate this issue. If oil consumption becomes excessive, it’s crucial to address it promptly to prevent more severe engine damage.

Timing Chain Tensioner

While the 1GR-FE uses a timing chain, which is generally more durable than a belt, the chain tensioner can fail in high-mileage engines, typically beyond 150,000 miles. Failure symptoms include timing chain noise and potential engine damage if left unaddressed.

Some owners recommend preventative replacement around 150,000 miles, with repair costs ranging from $800 to $1,500. Regular oil changes with high-quality oil can help prolong the life of the timing chain and tensioner.

Ignition Coils

Early VVT-i versions (pre-2009) of the 1GR-FE were prone to ignition coil failures, leading to misfires and rough running, but the issue is less common with the later Dual VVT-i engines.

Replacement costs range from $50 to $100 per coil. For owners of early models, it is advisable to keep spare coils on hand and be prepared for occasional replacements. Regular inspection of ignition coils during routine maintenance can help prevent unexpected failures.

Maintenance Recommendations

We recommend keeping on top of proper maintenance, which has proven crucial for the 1GR’s longevity. Here’s what we would do to ensure a healthy 1GR-FE capable of exceeding 200,000 miles.

• Regular oil changes every 5,000 to 7,500 miles using high-quality oil
• Attentive coolant system maintenance, including radiator inspection
• Preventative water pump replacement around 60,000 miles
• Regular inspection of ignition coils and spark plugs

Many owners have proven that the 1GR-FE can surpass 200,000 miles with proper care. However, this milestone often marks a point where major components may begin to wear out. After 200,000 miles, the risk of needing significant repairs or engine replacement increases.

Conclusion

From its origins as a reliable workhorse in Toyota’s trucks and SUVs to its surprising appearances in the world of professional drifting, the 1GR-FE has proven to be surprisingly versatile.

While it’s unlikely to be the first choice for performance enthusiasts compared to its flashier sibling, the 2GR-FE, the 1GR has some serious potential when pushed to its limits. Just ask Ken Gushi or Yoichi Imamura!

The 1GR-FE isn’t without its quirks, and the head gasket and water pump issues will concern many potential owners. However, regular maintenance is key if you’re looking to join the 200,000-mile club, and with proper preventive maintenance, we’re confident that it’ll treat you well. However, if you’re known for not liking to service your vehicles, perhaps consider alternatives that need less attention.

For those of you considering modding the 1GR-FE, there are options out there, from bolt-on supercharger kits to custom twin-turbo setups. However, be warned that the aftermarket scene is nowhere near as significant as some of the more common options. Be prepared to open your wallet and maybe learn a thing or two about fabrication!

Whether you’re planning on cruising in your stock Tacoma or dreaming of building the next tire-shredding drift sensation, the 1GR has proven to be a solid, capable engine. It might not be the easiest or cheapest path to big power, but it’ll certainly help your build stand out.

Photography Credits

Drifted would like to extend thanks to the following sources for the use of their images:

• Tennen-Gas
• SAF1999
• Brice Cooper
• joshua yu

The post Toyota 1GR-FE Guide – Everything You Need To Know first appeared on Drifted.com.

The drift scene, the JDM drifting equation as we know it, all came about as we know it thanks to a renowned driver by the name of Keiichi Tsuchiya, nicknamed “The Drift King”

He was so skilled that whenever he went on the track, it was sealed before it started - think of Lewis Hamilton’s dominance around 2020.

The talented Tsuchiya decided to relight the stands by taking his car sideways across the tarmac and around the corners with unprecedented slip angles, lighting up the tires and creating a smoke show to squeeze the heart.

The engine’s roar, the tire’s squeal, the burnt rubber’s smell, and the tension of a seemingly out-of-control car hooked the spectators like a moth to the flame.

To the crowd, it was a newfound excitement and experience.

To the drivers, it was a rub in the wound.

To Tsuchiya, it was a demonstration of prowess.

To Japan - it was the birth of a culture.

Propelling Tsuchiya to those levels was his humble Toyota AE86, conventionally known as the Corolla, which housed the engine we are all over in this article.

ae86 corolla track driving 4age
The car is a shell of its stock self, full to the brim with upgrades, yet all were in the spirit of the little gymnast of a car.

You can read more about Keiichi Tsuchiya AE86 Trueno in our in-depth guide, but if you’re more interested in the 4AGE itself, you’ll want to continue reading.

Which Cars Have the Toyota 4AGE Engine?

The 4A-GE came about with five generations starting in 1983 and coming to a close in 2000.

The car most known for this engine, the AE86, only housed the first three generations: blue, big port blacktop and redtop, and small port redtop.

• AA63 Carina 1983.06-1985 (Japan only)
• AT160 Carina 1985-1988 (Japan only)
• AT171 Carina 1988-1992 (Japan only)
• AA63 Celica 1983-1985
• AT160 Celica 1985-1989
• AE82 Corolla saloon, FX 1984.10-1987
• AE86 Corolla Levin 1983.05-1987
• AE92 Corolla 1987-1993
• AT141 Corona 1983.10-1985 (Japan only)
• AT160 Corona 1985-1988 (Japan only)
• AW11 MR2 1984.06-1989
• AE82 Sprinter 1984.10-1987 (Japan only)
• AE86 Sprinter Trueno 1983.05-1987 (Japan only)
• AE92 Sprinter 1987-1992 (Japan only)
• AE82/AE92 Corolla GLi Twincam/Conquest RSi 1986-1993 (South Africa)
• Chevrolet Nova Twin Cam (based on Corolla AE82) 1988
• Geo Prizm GSi (based on Toyota AE92 chassis) 1990-1992

Toyota 4AGE Engine Specifications

Let’s get a quick look at the specs before discussing them in detail.

• Engine displacement: 1.6 L (1,587 cc)
• Power: 86-95 kW (115-128 hp; 117-130 PS) at 6,600 RPM
• Torque: 15.1 kg⋅m (148 N⋅m; 109 lb-ft) at 5,800 rpm
• Redline: 7,600 rpm
• Layout: DOHC Inline-4
• Bore and Stroke: 81 mm x 77 mm (3.19 in × 3.03 in)
• Dry Weight (with T50 gearbox): 154 kg (340 lb)
• Valves: 16 valves (4 per each cylinder) or 20 valves in 4th and 5th generations - 5 per cylinder
• Fuel Delivery System: MPFI

Boasting a dual overhead cam design, the engine sports individual cams to regulate the intake and exhaust valves.

Sliding right into the valves, there is a total of 16, four for each cylinder, two for intake, and two for exhaust. This allows for finer control to optimize fuel efficiency and impressive performance.

For the 4th and 5th generations, the car boasted 20 valves - 5 per cylinder.

While all the hype and love around it in the JDM drifting community is warranted, one has to remember that the car was originally designed for your average run-of-the-mill grocery-getter. After all, it’s a Corolla.

The 1.6-liter engine, which is half your daily intake of water, combusts to a power of 115 horsepower in the first generation to 128 ponies in the third generation, and it peaks that power at 6000 RPM.

Those power units are derived from their leveraging brethren, 148-newton-meters or 109-pound-feet of responsive torque. It is responsive due to its naturally aspirated nature and the quad valve design.

Each valve has its valve spring, meaning it is faster to respond and is lighter on its own two feet than a big single massive valve for the intake or exhaust. This design also enables more effective use of the cylinder head space, and more air volume is moved into the engine.

The cylinders are 81 mm, or 3.19 inches, in diameter and have a range of vertical motion of 77 mm, or 3.03 inches.

This near one-to-one bore-to-stroke ratio gave the RWD 4A-GE a chance to rev itself to the happiness of 7600 RPMs, with room to spare if aided with upgrades and the already forged crankshaft built-in.

For reference, part of the reason Formula 1 engines are so rev happy is the bore-to-stroke ratio, for the late V10s of the early 2000s a 2.17 and went to 20,000 RPMs and the current V6s have a bore-to-stroke ratio of 1.51 and go to 15000.

While materials and construction surely and definitely play a role, the idea that the piston must travel less means that it has to cover less distance in a single revolution, meaning it has to dissipate and work will less energy, forces, and stresses, which allows for higher and higher rev ranges.

Toyota 4AGE Tuning & Upgrade Potential

Now, we mentioned the aid of upgrades above, and here is where we crash tail first into that garage.

When the engine was first born, it was not even considered for anything other than a light and fun engine that didn’t break every couple of throttle pumps.

Back then, with that level of engineering, the engine seemed to have already been pushed to its absolute limit.

A tiny 1.6 liter, all one could think of to make that little funky thing to make more power was a turbo. But that lagged, especially back then, and usual upgrades barely netted anything, hardly reaching the 150 horses at best at the crank.

Yet, race-trim engines emerged, smashing the 200 at the wheels. A complete double at the wheels is nothing to scoff at, especially when it’s all engine.

So how did these engines achieve their powers?

The main takeaway from such an endeavor is purely an equation of how much air the engine can effectively take in and how much combustion energy is directed at moving the pistons rather than being wasted heat.

To start, strengthening the bottom end caps to handle more power, especially when adding an 80 hp nitrous bottle.

Next, increasing the displacement by using a stroker crankshaft along with a little bore, increases the engine displacement by 9%.

Culminate that with increasing the higher compression ratio, the ratio of the volume at the bottom of the stroke to that at the top of the stroke is also referred to as top dead and bottom dead centers. The engine is originally at 10:1 and was bumped up to 12.3:1.

Of course, to complete the seal, the oil and piston rings have to be brought up to par.

Breathing has to be optimized with independent throttle bodies, as well as bigger valves and valve seating.

Of course, with all that new power output, the radiators and cooling systems have to be given some proper upbringing.

The naturally aspirated engine’s potential has been found at 280 horsepower at 12,000 RPMs, but adding forced induction raises the bar significantly, combining that high rev capability with rather considerable amounts of boost would be the formula for huge amounts of power.

Israel Chino’s high revving, boosted 4A-GE build is a testament to that like no other! A 900hp car on a 900kg chassis that is a 1:1 power-to-weight ratio, on par or even above that of the most elite supercars.

Check out Israel’s insane build in this video:

If you are interested in the process of building such an engine, this two-part mini-series will give you a good idea and insight on what such an impressive build entails:

Toyota 4AGE Engine Swaps

The 4A-GE is such a great and renowned engine that is a common engine swap for people with other small cars that do not have it have been looking towards swapping their engines for it.

It is such a strong and reliable engine for its weight class that it truly turned heads, especially with the potential it houses.

While most of the 4A-GE’s are used in the same chassis they were assigned to, or even using a newer generation like upgrading from a 16 valve to a 20 valve, some other cars were fitted with 4A-GE

Have you ever heard of a 4A-GE Toyota Hilux? Probably not, but now you have; check this out:

Trust me, small engines have their place in small cars. Sure, 600 and 1000-horsepower engines are a brag, I’ll admit. But there is something special about small and nimble, like a bee.

How about a Ford Escort MK2,fitted with a 4A-GE? Could Ford’s lightweight rally legend give the AE86 a run for its money?

And for racecar applications? Light and nimble is what defines rally and rallycross, and a lot of affordable tracktoys.

Inspired by the formula atlantic 4A-GE, this little Starlet’s high performance engine is a monster, capable of achieving 11.500 RPMs. Fully built, engineered, and tuned by Mikko Kataja.

Producing a whopping 260 horses to his 760kg chassis. If you were to scale that up to GTR’s weight of 1700, which is 2.24 times the weight. That would make 582 horsepower for that weight.

So this little 11,000 rpm Starlet is in the same power-to-weight ratio class of the GTR. The only difference is it’s a hell of a lot lighter and being high RPM NA, it possesses unparalleled response levels.

Why is the power-to-weight ratio so important? It is related to newton’s second law: F=M*a, and its angular companion: t=I*????.

The acceleration of a said object is F/M, force to mass ratio, in other words, power (derived from the force of torque at a given RPM) to weight. This would give a consistent metric of the car’s performance in a straight line.

Toyota 4AGE Reliability & Common Issues

As mentioned above, the engine is in a car that is meant to be a daily driver, so as a result, it is designed for the best reliability.

Now, the engine is an old one for sure, so it will not be free of issues, but that said, it can easily be a daily driver that you can count on and deal with on a daily basis.

If you decide to go for a completely JDM spec of the engine, the only hassle you might find is sourcing parts from Japan, as those are going to be difficult to obtain and deal with.

Otherwise, this is a Japanese car, a daily driver one, so all your issues would not be engine block related unless you opt to go crazy with the upgrades.

Filters, coolers, and maybe simple leaks are likely all you will encounter.

Initial D 4AGE AE86

To be fair to our readers, please note the existence of spoilers for Initial D starting stage 2 final stage.

Let’s get to the meat and potatoes on this one. You might have heard of this engine simply by watching or reading Initial D Anime/manga.

The AE86 of Takumi was a first-generation model, both in chassis and engine (a bluetop), and amid the events of the Anime’s timeline, the engine was already at the end of its lifespan, already abused by Takumi’s father beforehand. It was also updated with some soft upgrades by TRD: high tension wires and a close ratio gearbox.

The engine suffered terminal damage during one of the races against an Evo III GSR. and was then replaced by a racing spec 4A-GE from a group A AE101 purpose-built by TRD.

Being a purpose-built racing engine, it surely passed over many road legalizing rules that would qualify the engine for road use, and that Takumi’s father’s friend, Yuichi, alluded to several times. That build of the 4A-GE made 240 horsepower and ran up to 12,000 RPM.

Although later in the series, the engine was tuned to make its most useful power at around 9,000 RPM to decrease stresses and preserve the engine. the extra 3,000 RPMs were left as a last-resort effort to make or break a battle.

4AGE Conclusion

Are your eyes on a 4A-GE? Swapping it into your MR2? Sourcing parts, replacing another engine? or are you just reading around for fun?

Did you stumble on this engine by chance, or did you own a car that housed it, whether originally or swapped?

Or, did you encounter the engine in a show like Initial D, and it gripped your curiosity?

Either way, we hope that this article has been helpful and allowed you to decide on the generation of your choosing or just satisfy your thirst for JDM knowledge.

If you’re looking for a different Toyota engine, why not check the Toyota 1GZ-FE.

The post Toyota 4AGE Engine – All You Need To Know first appeared on Drifted.com.

Introduction

Nissan’s high-performance subsidiary NISMO produced the RB26DETT, a race bred 2.6-liter inline-six DOHC engine with dual overhead camshafts. Originally used in the Nissan Skyline R34, R33, and R32 GT-R, it has become a highly coveted engine for both automotive and tuning enthusiasts due to its extreme power potential, which we’ll delve into later.

The RB26DETT is celebrated for its excellent reliability, high-revving capabilities, and significant tuning potential, thanks to its twin turbo setup that delivers smooth power and impressive performance figures.

With its lightweight aluminum block and various aftermarket performance parts easily available, the RB26DETT has gained popularity for engine swaps and custom builds. It’s an excellent choice for anyone seeking high-performance power, whether you’re a racing enthusiast or simply looking to create a potent street machine.

An Insight on The RB26DETT

Most Nissan Skyline GT-R owners and fans of the car consider the engine to be its standout feature. The RB26DETT has a legendary reputation and is known as one of the most tuneable engines worldwide. GTR fans can find some outstanding wallpapers on Drifted.

The RB26DETT is equipped with ceramic impellers in its turbos, making it a fully turbocharged engine.

Its displacement is only 2.6 liters, with a compression ratio of 8.5:1, resulting in low torque at low revs.

However, the over-square configuration of the cylinder bores (86.0 mm cylinder bore and 73.7 mm piston stroke) and the inherent balance of the inline-six layout enable high revs.

The low compression ratio can accommodate high turbo boost, and an aftermarket cylinder head gasket can further decrease the ratio.

Due to the nature of turbocharging, high torque can only be achieved at high RPM, as turbos cannot provide much boost at low RPM. When combined with high revs, this results in high horsepower.

Boosted air is fed to the engine from the intake plenum chamber, which can efficiently handle up to 900 horsepower based on experience.

The RB26DETT engine features an individual throttle body with a dedicated throttle plate for each cylinder, resulting in an instant and sharp response to the throttle.

In addition, the engine is equipped with coil-on-plug ignition coils for each cylinder, boosting the ignition system’s efficiency in high boost pressure.

While the engine block is made of cast iron, making it heavier than most modern aluminum-alloy blocks, it has its own set of benefits. The cast-iron block provides excellent stiffness, high durability, and exceptional resistance to rubbing wear, making it ideal for cylinder walls.

The RB26DETT prioritizes reliable performance at high boost and revs, even if it means adhering to some old-fashioned techniques.

Despite its strengths, the RB26DETT is not without flaws. Its cast-iron block adds significant weight and limits heat dissipation.

Additionally, while the stock internals boast racing engine features, they are not as robust and balanced as they could be.

Nissan Skyline GT-RS

To truly compete against racing cars with larger engines, the Nissan Skyline GT-RS requires proper tuning and skillful driving.

While it may lack in torque at the bottom and midrange of the powerband, this can be compensated for at the top end with the right modifications.

In order to surpass the big-engine monsters of the GT2 and GT3 classes, the GT-R must generate at least 600 horsepower and 487.5 lb-ft of torque output, preferably around 5200-5500 rpm, which is achievable with an RB26DETT engine running 1.5 bar of boost pressure.

Beyond modifications, a GT-R driver must also possess the skills to effectively utilize the car’s potential, such as downshifting in corners to keep the engine revving.

While this technique may not be ideal for endurance racing, the GT-R has still been dominant in the Super Taikyu endurance series and relatively successful in the grueling 24-hour Nürburgring race.

For car enthusiasts in the United States, the Japanese Domestic Market (JDM) Nissan GT-R is available in American specifications, offering a taste of the GT-R’s legendary performance.

RB26DETT Mods, Upgrades, and Tuning

The RB26DETT engine is managed by a sophisticated engine control unit (ECU). However, while the aftermarket offers different chips and whole ECU units for upgrading engine management, the RB26DETT is not the pinnacle of automotive engine technology.

Unlike most modern engines, the RB26DETT does not have hydraulic valve lifters in the valvetrain to provide quietness and smoothness. Instead, it uses solid lifters that are noisy but precise in valve actuation, making them more reliable for high engine power output and high revs, which is why racing engines prefer this type of valves actuation.

Additionally, the RB26DETT uses a timing belt rather than a timing chain, which is common in modern engines. While a chain is heavier and requires lubrication, accurate tension adjustment, and vibration damping, a belt is easier to adjust for proper tension.

Chains also add more friction, which can cause issues when the engine works hard and revs fast.

Despite these drawbacks, the RB26DETT has become popular among tuners due to its reliability, precision, and ability to handle high engine power output and high revs. The engine is a testament to Nissan’s engineering prowess and remains a highly sought-after power plant for enthusiasts around the world.

Minor mods, such as improving the exhaust, air filters, ECU, and boost control, can easily boost the RB26DETT engine to 400+ bhp. The RB engine can be tuned to produce an astonishing 1500+ bhp; however, tuners must be careful to maintain the engine’s reliability, which is crucial for high-performance engines.

This is where expert tuners separate themselves from those who claim to be RB26 specialists.

The RB26DETT engine is so revered as an inline-six powerhouse that tuners have started installing it in other high-performance cars. For instance, many Toyota Supras, Nissan 300ZXs, and 350Zs have been retrofitted with upgraded RB26DETT engines.

Kazuhiko Nagata, the president of the renowned Japanese company Top Secret, installed an RB26DETT engine in his Z33 project car because he considers the RB series engines to be more reliable for high horsepower and better sounding than a VQ engine.

Engineers at Option Motorsport used fiber-optic cameras to examine the RB26 engine and found that the crankshaft began to visibly shake above 7200 rpm. Each engine is unique and has its history, but this observation suggests that the safe RPM limit for RB26 engines should be lowered to 7000 rpm.

This means that one of the main advantages of the RB-series motors—the high rev limit—cannot be used to increase the horsepower output.

For those looking to upgrade the RB26DETT engine, it is crucial to understand the limitations and weaknesses of the stock components. While minor modifications such as upgrading the exhaust, air filters, ECU, and boost control can increase the engine’s output to 400+ bhp, to achieve 500-wheel hp and more, practically everything needs to be upgraded, including the engine internals and bolted-on components.

However, even after extensive modifications, the low-displacement engine equipped with bigger turbos still lacks the necessary torque at low and mid-range rpm, making it a disadvantage for both street driving and racing. Additionally, the RB26DETT does not have variable valve timing, making the low rpm torque issue even more significant.

One way to address this lack of low-end torque is by increasing the engine’s displacement. For instance, an increase from 2.6 to 2.8 liters significantly improves the engine’s powerband. Moreover, it is essential to upgrade components that are typically weak in the RB26DETT engine, including the oil pump, pistons, and con rods.

Another limitation of the RB26DETT is the absence of variable valve timing, which can be addressed with an HKS V-cam variable-in-take-valve timing device, improving the torque curve in the low and mid ranges.

Even with all these upgrades, it is still challenging to match the performance of big high-torque engines such as the Viper GT-S. The Falken GT-R’s performance at the 24-hour Nürburgring race and the R34’s failed attempt to participate in the SCCA-Pro World Challenge GT Cup in the USA in 2006 highlight this fact.

Therefore, to ensure reliability, it is essential to install an aftermarket crankshaft damper to reduce torsional vibration in the crank and exchange the stock crank and other internals for balanced ones from the aftermarket.

RB26DETT Reliability

Upgrading the RB26DETT engine to achieve high power output can bring up some potential problems, such as fuel consumption, engine overheating, and reliability issues. These concerns can arise from a high boost setting or a poor mapping job. Even after professional tuning, the RB26DETT is at risk of failure if it’s boosted to around 30 psi and revved to 8000 rpm or higher. This raises the question of whether it’s even legal to import a GTR.

It’s important to note that the metaphorical “time bomb” doesn’t necessarily mean the engine will explode, although that is a possibility. Rather, it suggests that there’s a high chance of engine failure and that the RB26DETT’s overall reliability is lower compared to a tuned high-torque engine with a larger displacement, which won’t need to work as hard to achieve the same output and has a flatter torque curve.

On the other hand, larger displacement engines tend to lose torque at the top end of the powerband, where the upgraded RB26DETT excels. However, reliability and fuel consumption become issues at this point. This is why Porsche increased the engine displacement from 2850 cc in the 959 to 3600 cc in their more modern Turbo and GT2 models.

The lubrication system of the RB26DETT is another area of weakness, with oil pump failure being a possibility. Therefore, it’s a priority to switch to an aftermarket oil pump, such as the one from NISMO, when upgrading the engine.

And this common oiling problem goes even further – sudden drops in oil pressure may develop during high acceleration loads, making oil pump extension drives, like the one from Trust, essential. Installing an oil cooler is also mandatory. Finally, it’s crucial to change the oil after hard driving, such as track days, and to stick to a regular oil change interval.

The RB26DETT inline-6 engine features two exhaust manifolds that divide its cylinders into two banks. However, the second bank of cylinders faces some challenges, including receiving less air due to its location at the end of the intake manifold and experiencing higher coolant temperatures since the coolant flows first to the other bank of cylinders.

To cool down the 5th and 6th cylinders, it may be necessary to add more fuel. This can be achieved by upgrading the fuel system with better components such as fuel pumps, fuel rail, swirl tank, and injectors. However, failure to manage heat in the engine bay, including the air intake system, can result in a knocking sound.

Heat management of the air intake system involves reducing the intake air temperature through the use of a larger and more efficient intercooler, as well as modifying the air intake scoop and piping.

It’s worth noting that every additional degree of air temperature that enters the combustion chamber reduces the horsepower output. Installing air filters without an air box or a screen separating them from the engine bay is not recommended.

To ensure that there is always an excess source of fresh air, it’s advisable to have a ram effect if possible. The stock air outlets from the RB26DETT turbos are not optimally designed, particularly the air outlet for the second turbo, which gets hot due to its proximity to the first turbo’s exhaust. Read our guide on GTR exhausts for more tips.

For high output tuning, relocating the turbos on top of the engine bay, replacing the exhaust manifold and air piping, and installing proper thermoinsulation are crucial steps to take.

To manage heat in the engine bay, it is essential to thermoinsulate under-hood parts. The power steering reservoir and pipes, especially the high-pressure pipe that passes near the turbos, must be thermoisolated. Installing an aftermarket power steering fluid cooler can also help. Similarly, the brake master cylinder and ABS actuator should be separated from the engine bay by a thermoshield.

Proper ventilation of the under-hood space can reduce the chances of knocking and thermal oil break-down. In a stock GT-R, the airflow is directed from the front opening and, in the case of the R34 V-spec II, from the hood NACA duct, to the wheel arcs and under the car, which is not the most efficient path.

The NISMO hood with GT500-type ventilation offers a much more efficient ventilation solution by allowing air to flow from the front opening and out through the hood on the top of the car.

However, for even better results, additional ventilation ducts in the front fenders and in the hood close to the firewall, especially on the left side where the turbos are located, are highly recommended. Some aftermarket hoods have an intake scoop on top, which provides an additional air flow through the under-hood space.

Despite its weaknesses, the RB26DETT is an excellent engine. With proper upgrades, including high-quality forged and balanced engine internals and upgraded bolt-on parts, it can be reliable with medium to high engine lifespan while still producing 700+ horsepower. It’s undeniable that the GT-R legend owes a great deal to the RB26DETT.

Conclusion

In conclusion, the RB26DETT engine is an engineering marvel that has been a formidable and reliable power source for decades. Its high-revving capabilities, smooth power delivery, and impressive performance figures have made it an ideal choice for a wide range of applications.

The RB26DETT’s versatility is evident from its use in both racing and street driving, where it has proven to be a reliable and efficient engine that can be tuned to deliver performance that exceeds even the most demanding expectations.

Its enduring popularity and timeless design are evident from the fact that it is still in high demand today.

Whether you’re a Nissan fan, a racing enthusiast, or simply seeking a powerful engine, the Nissan RB26DETT motor is an excellent choice that can provide you with the performance, reliability, and excitement that you seek.

Its legendary status and impressive track record make it a highly coveted engine that continues to attract attention and admiration from car enthusiasts worldwide.

If you are looking to snag your own RB26 to fit into your project car, then check out JDM Distro, a reliable JDM parts importer.

The post RB26DETT – Nissan’s Ultimate Engine? first appeared on Drifted.com.

Here, you can click on a particular section within this article, otherwise, scroll down as we cover everything you need to know about Honda’s K24 engine.

• Which Cars Have the Honda K24 Engine?
• K24 Engine Specifications
• Honda K24 Tuning
• K24 Engine Swaps
• Honda K24 Forced Induction
• K24 Reliability & Common Issues
• Conclusion

Introduction to the Honda K24

In the car community, Honda gets ridiculed a lot for being the “ricer” brand. Yet, we can’t ignore the impact its cars have had in the automotive landscape. Raise your hands if you remember the very first scene from The Fast And The Furious.

Since the Honda fanboys came out in force and criticized the lack of Honda-related content at Drifted, we’ve opted for creating some in-depth guides to keep them happy.

Let’s face it. There’s nothing more challenging to deal with than an angry Honda fanboy. (Just kidding!)

For those of you that are wondering why we’ve decided to check out the Honda K24 engine, it’s because Honda’s legendary K-series engines are immensely underrated. That’s right, we said it.

While you’re huffing and puffing about FWD rice-boxes, we highly recommend that you head over to our previous guide for the K24’s younger brother, the Honda K20.

*WARNING* The K20 guide contains RX7 FD’s with Honda powerplants! Too late? Whoops.

The Beauty of the K24

Part of the beauty of Honda’s K-series is the convenience when it comes to swapping it into some of the least likely chassis imaginable.

We’d forgive you for purely thinking along the lines of cheap, FWD cars when it comes to the K-series.

However, you may well be surprised to hear that it’s not actually that challenging to swap the K24 into just about any chassis, even when it comes to some of the rarer mid-engined cars.

V8 swaps have become increasingly common throughout motorsport, mostly thanks to their (mainly) reasonable price tags alongside convenience and ease of sourcing when it comes to parts and engines.

It also, of course, falls to their impressive reliability, power potential, and ability to handle forced induction efficiently.

But, what if we told you that the Honda K24 also ticks all of these boxes?

We’re not the only one that thinks this, either, and for that reason, Speed Academy have put them head-to-head in this video:

Better Than an LS Swap?

There’s a wide range of K24 engines located under the hoods of some of the most popular cars on the market, such as Honda Accord’s and CR-V’s, and this makes them extremely convenient and cheap to source.

They’re also impressive when it comes to off-the-shelf upgrades and aftermarket support.

So, if you’re looking for extremely high power potential, a K-series swap could well begin to make a lot of sense.

As the popularity of LS swaps increases, the K-series could emerge as the superior purchase over time, with so many drifters opting for the typical V8 route.

With an ever-increasing off-the-shelf aftermarket mounting and wiring options available for the K-series, it’s undoubtedly emerging as an underdog in the engine-swap world.

So, whether you’re looking for a cheap and reliable daily driver swap, or a fully boosted race setup that’ll be able to help you smash ¼ mile records, the K24 certainly needs to be a contender to consider.

Make sure you keep your eyes peeled later on in this guide, as we’ll unveil some of the unlikely K24 swaps that we’ve come across.

A Legendary Lineage

Honda’s K24 series has birthed several of the immensely popular K-series engines over the years, and there have been more updates and variations than most enthusiasts realize.

After its initial launch in 2001, the 2.4-liter powerplant debuted in the Honda CR-V with the original K24A1 variation.

Production continues to the present day with the K24Y and K24Z variants, but they’re probably not what you’re looking for, as we’ll explain later.

The K24’s design was remarkably similar to its predecessor, the 2-liter K20.

Still, it featured some additional bonuses alongside the more significant displacement, such as an enlarged bore and stroke, friction-reducing technology, and electronically controlled ignition timing.

We’ll venture a little deeper into what changed between the many variations of the engine later in our guide.

You can either use the navigation at the top of the article to go to a specific section or continue scrolling down if you’re interested to know everything there is to know about Honda’s potent K24 engine.

Which Cars Have the Honda K24 Engine?

There have been many changes made to the K24 engine over its lifetime, and we highly recommend reading on if you’re considering which variations are going to be best for your needs, particularly if you’re looking to tap into their tuning potential.

Here is a list of cars that are powered by some form of the ever-popular Honda K24 engine series.

K24A1

2002-2009 Honda CR-V

K24A2

2002-08 Honda Accord Type-S (Japan)
2003-08 Honda Odyssey Absolute
2004-08 Acura TSX

K24A3

2003-07 Honda Accord (Japan/Europe)
2003-07 Honda Accord Euro (Australia/New Zealand)

K24A4

2003-05 Honda Accord (U.S.)
2003-08 Honda Odyssey
2003-06 Honda Element

K24A8

2006-07 Honda Accord (U.S.)
2007-11 Honda Element
2008-14 Honda Odyssey (Japan)

K24W (Earth Dreams)

2013-17 Honda Accord (U.S.)
2015-19 Honda CR-V (U.S.)

K24W4

2013-present Honda Accord (Thailand/Malaysia)
2014-present Honda Odyssey (Australia)

K24V5

2017-present Honda CR-V (Thailand)

K24V7

2016-present Acura ILX

K24W7

2015-20 Acura TLX

K24Y1

2012-16 Honda CR-V (Thailand)

K24Y2

2012-15 Honda Crosstour

K24Z1

2007-09 Honda CR-V (RE3, RE4)

K24Z2

2008-12 Honda Accord LX/LX-P (U.S.)
2016-present Proton Perdana

K24Z3

2008-12 Honda Accord LX-S/EX/EX-L (U.S.)
2009-14 Acura TSX
2008-15 Honda Accord (CP2, CS1)

K24Z4

2008-12 Honda CR-V (RE7)

K24Z5

2010-15 Honda Spirior

K24Z6

2010-11 Honda CR-V (U.S.)

2012-14 Honda CR-V (U.S.)

K24Z7

2012-15 Honda Civic Si
2013-15 Acura ILX

Honda K24 Engine Specifications

Since there are so many engines within the K24 family, we’ll give you a quick rundown of their specifications. This will help you choose the best K-Series engine for your specific needs – be it for a drift car, a show car, or an autocross champ.

In addition, we’re going to break down the main positives and negatives of their commonly-found engines too. So, let’s get started!

K24A1

The K24A1 was the first engine that Honda released within the K24 range, which featured in the 2002-09 Honda CR-V’s, and came with 160 hp and 162 lb-ft torque.

The A1 was where it all began, and it was a very similar engine to the B-series engine, with impressive low-end torque production.

Although it features impressive performance, it has a compression ratio of 9.6:1. The K24 features more durable connecting rods and superior counter-weighted crankshafts over its predecessor, the 2.0-liter K20.

When combined with the more significant displacement and with the addition of a composite two-stage intake manifold, this allowed for superior power and torque.

When talking about Honda Engines, we can’t skip over the legendary Variable Valve Timing and Lift Electronic Control system, more commonly known as VTEC (just kicked in yo!). Check out the video below to learn more about this system.

Sadly for K24A1 owners, it has no VTEC mechanism on the exhaust cam, and mostly relies on twelve valves before 2,200rpm, with the other four coming into action beyond.

The K24A1 has become one of the most popular choices for engine swaps and conversions.

Thanks to similarities between the A1 and A2, you can straight-swap the A2’s oil pump, which you’re not able to do on other K-series engines.

The K24A1 has one of the best cylinder heads, which is similar to the lucrative Type-S head, and takes kindly to being ported, which allows for an impressive amount of airflow.

Alternatively, if you’re looking for an easy swap, then the Type-S head itself is also an option.

If you’re looking for the best out-of-the-box solution from the K24, then let us introduce you to the K24A2.

K24A2

The K24A2 typically earns the title of the most impressive K24 engine out of the factory, but it’s also gained a pretty high price tag because of this, which makes other variations more tempting if you’re not shy when it comes to tuning.

Featured in the Acura TSX, alongside the Honda Oddessey and the JDM Accord Type-S, the K24A2 was capable of achieving between 197-205hp and between 164-171 lb/ft torque.

This engine was known as the K24A3 in the European and Australian markets.

For the A2, Honda opted for a significantly updated bottom-end, and the compression ratio rose to 10.5:1.

Unlike the K24A1, this time, they opted for the i-VTEC system on both the intake and the exhaust camshafts. They also applied lightweight pistons, dual balance shafts, a forged crankshaft, and re-inforced connecting rods, along with improved cams.

For the 2006-onwards Acura TSX, the K24A2 got an improved air intake duct, from 70mm to 80mm, an upgraded throttle body, from 60mm to 64mm, along with enhanced intake valves, a new intake camshaft, and an exhaust upgrade.

The outcome of this was the best performance that was achieved from the K24A2, pushing out 205 hp at 7,000 rpm and 164 lb/ft torque.

Although the power figures grew from 197-205 hp with the new improvements, torque took a slight hit, going from 171-164 lb/ft.

K24A3

The K24A3 is the same engine as the K24A2, produced for the European and Australian markets. The Honda Accord and Accord Euro models made from 2003 to 2007 carried this 2.4-liter four-cylinder inside the engine bay.

Unlike the K24A2, the K24A3 didn’t receive an upgrade in its later model years, so power remained at the initial figures of 197 hp and 171 lb/ft, with a 7,200 rpm redline.

K24A4

The K24A4 block is often the most common choice for those of you that plan on swapping out the pistons since they can often be sourced for a reasonable price thanks to their popularity.

The K24A4 was based on the A1, rather than the A2, and featured a compression ratio of 9.7:1. It provided 160 hp and 161 lb/ft torque. You can find this engine in everything from the Odyssey to the Civic Si.

Several revisions included an RAA single-stage intake manifold and revised intake and exhaust ports inside the cylinder head, which most enthusiasts agree don’t flow as well as the A1.

The primary purpose of the K24A4 production was to meet strict emissions standards. Since the power barely differs between the two, we’d say that Honda did a pretty decent job.

K24A8

The K24A8 was a slight upgrade from the K24A6, which they refined to meet an updated environmental regulation. Debuting in 2006, the K24A8 powered the Honda Element, Accord, and Odessey. The improved fuel efficiency of this version made it especially attractive for these family vehicles.

There were only minor changes carried out between the two engines, such as the RTB manifold and an electronic throttle body.

Power figures increased slightly with this minor revision, allowing for 166 hp and 161 lb/ft torque.

K24Z1

Launched in 2007 for the Honda CR-V, the K24Z1 officially replaced the K24A1. The K24Z-family’s primary aim was to meet the ever-growing emissions standards, while still trying to build on the success of the K24A.

It continues the 9.7:1 compression, and provides 166 hp and 161 lb/ft torque, with a redline of 6,500 rpm.

For this version, the oil filter is relocated, and internal changes include a forged-steel crankshaft and an internal balancer unit.

They continued to use the later 1-stage RTB intake manifold alongside an electronic drive-by-wire throttle body.

A new, denser catalytic converter has also been introduced to comply with the increasingly harsh emissions standards.

Despite its focus on emissions, the K24Z-family still provides an excellent platform tuning and engine swaps and doesn’t vary much from its predecessors.

K24Z2

The K24Z2 officially replaced the K24A8 on the production line and conformed to the highest emission standards.

Featuring a 10.5:1 compression ratio, revised fuel injectors, an integrated exhaust manifold, and an R40 intake manifold, this enabled power figures of 177 hp and 161 lb/ft torque.

K24Z3/K24Z7

The K24 once again received a significant overhaul when it came to the K24Z3 engine, which arrived with the substantially heavier second-generation Acura TSX.

While the K24Z3 for the Honda Accord had a 10.7:1 compression ratio, which produced less power and torque, it was effectively a K24Z3 with a high-flow exhaust system, capable of 190 hp and 162 lb/ft torque.

On the other hand, the 2009-14 Acura TSX K24Z3 had an improved engine with 31mm exhaust valves and a modified i-VTEC system, also providing a compression ratio of 11.0:1 and an increase to 201 hp and 172 lb/ft torque.

For the CP2 and CS1 Honda Accord models, however, it also featured the TSX’s superior engine, which was also the same as the K24Z7.

Included with the K24Z3 are chain-driven dual balance shafts, i-VTEC on intake and exhaust camshafts, lightweight pistons, uprated rods, and computer-programmed fuel injection (PGM-FI).

K24Z4/K24Z5/K24Z6

In another minor revision, Honda once again had to update the K24Z1 to conform to revised emissions standards, which meant they once again had to use a 9.7:1 compression, this time with 161 hp and 161 lb/ft torque.

The K24Z5 and K24Z6 are similar to the K24Z2, but with minor adjustments. The K24Z5 was only available in China, and the K24Z6 was later offered on Honda CR-V models sold in the United States.

Honda K24 Tuning

According to us here at Drifted.com, “affordable” and “performance” are two words that perfectly describe the Honda K24 engine.

There is a wide variety of options when it comes to tuning the K24 engine, and some incredible power figures are waiting to achieve if you’re willing to put the time and money into unleashing its potential.

Not only that but, you’ll probably need to include some blood, sweat, and tears, and plenty of swearing, too!

We already know that the K24A2 is capable of achieving 205 hp and 164 ft/lb torque out of the factory with the Acura TSX, but what if we want to aim higher?

The general recommendation to get the best basic setup with the K24 is to buy any K24A cylinder block, along with a K20A2, K20A Euro R, or KA20A Type R head.

Be warned that this only applies to the K24A series engines. The K24Z cannot be used due to the pistons making contact with the K20’s cylinder head.

Although it may seem odd to use K20 parts, they feature superior valve springs and camshafts to the K24. If you opt for this route, you’ll also want to consider replacing the K24’s water pump with the K20’s.

With race bearings, high-compression pistons, rods, studs, an uprated flywheel, fuel injectors, an ECU upgrade, and a K20A2 oil pump, you’re likely to get about 260 horsepower.

If that’s not enough, and you want to go to 300hp without looking at the forced induction route, you can do additional internal porting, along with valves, cams, an uprated throttle body, a CAI, and uprated manifolds along with a full exhaust system.

Forced Induction & Crate Engine Options

If you’re willing to go down the forced induction route, then power figures start at around 400hp and are capable of rising to some pretty incredible power figures, if you have the cash to throw at it.

Are you considering building a 500-horsepower K24 engine? This video will show you how it can be done. (Okay, perfectionists, it’s more of a K27, but you get the idea.)

If you do have the cash going spare, then there are always K24 crate engines out there to consider.

Companies such as 4 Piston Racing, offer highly-tuned turn-key K24 crate engines, with their K340 offering 340hp at 9,000 rpm, right the way through to their full drag setup, which is capable of an insane 8.94-second quarter-mile.

Sounds perfect, right? Sure, just be prepared to pay the price! 4 Piston Racing will happily sell you one of these for a hair over $11,000.

The great thing about the K24 engines is the wide variety of modifications on offer. No matter whether you’re looking for some off-the-shelf power upgrades, or a full race engine build.

They’re certainly capable of producing incredible power figures with extremely high levels of reliability when built and maintained correctly. It’s a Honda after all!

They can also make for perfect drift car engines, make sure you turn up the volume and prepare for an eargasm as we head back to 2014 to appreciate this S2000 K24 Formula Drift build:

We always highly recommend doing your research before you opt for the ideal K24 solution, but our information should certainly give you an excellent base for your future build.

Honda K24 Engine Swaps

Okay, so, this is where things get fun. We’ve all seen the Civic EG K24 swaps, and yeah, it’s convenient and all, but let’s face it, everyone and their dog has done that by now.

We’ve seen some pretty wild K24 swaps over the years, from Honda NSXs to bespoke Noble M400s. This just goes to prove what we said earlier with regards to the Honda K24 being the perfect V8 rival for just about anything, from RWD drift cars to mid-engine Time Attack weapons.

A simple Google search will reveal just how many simple K20/K24 swaps there are out there on the market, and there are several off-the-shelf packages for the Mazda Miata and Nissan 240SX owners out there.

For those of you that are considering it for your 240SX or Miata, the most common transmission for the swap would be the BMW ZF manual gearbox, which is thankfully both easily sourced and reasonably priced.

Other common K24 conversions are the likes of the Civic, but also the Toyota MR2, various Lotus’s, and also the Honda S2000.

Let’s start our crazy swap list with this ridiculous Subaru BRZ! BRZ + K24 + Gigantic turbo = This 700 hp insanity:

Since we mentioned mid-engined cars, how about another turbo-powered K24, this time in an MR2?

If MR2’s aren’t your thing, then you can surely appreciate a Supercharged 700hp, 800kg Lotus Exige turbo K24 destroying the competition at a Hillclimb event?

Or, what about the perfect sleeper? This Indonesian dude has the perfect recipe with his Honda Brio!

Finally, it doesn’t get much more awesome than this. This wheelie-popping K24-powered Toyota Tacoma destroys the competition at a drag event to collect $5,000.

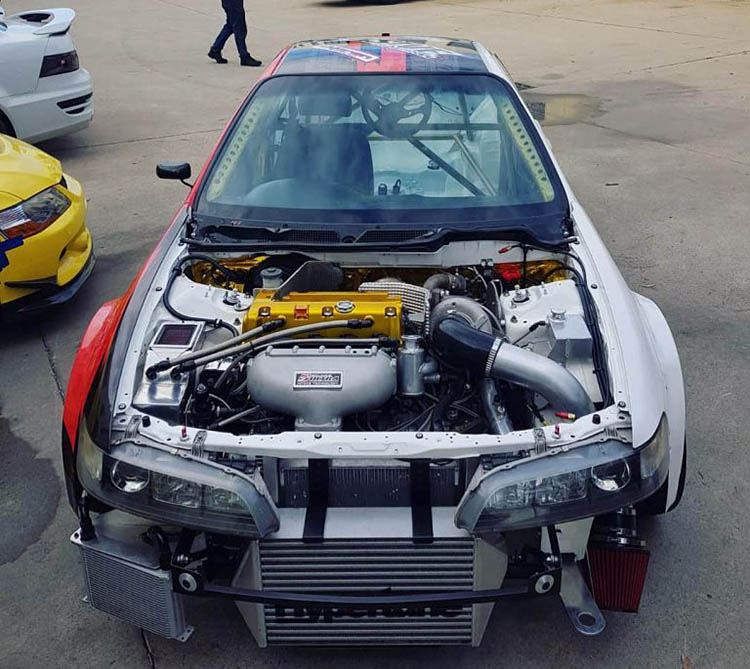

Honda K24 Forced Induction

If you are planning to feed your K24 with some sweet, performance-inducing forced induction, there are plenty of choices on the market.

There’s certainly no shortage of turbocharged K24’s out there, but there’s also a decent amount of supercharged ones, too.

Thankfully, the K24 is one of the most convenient engines when it comes to forced induction, and can end up being one of the cheapest and most convenient engines to modify.

With the stock internals being capable of handling up to 4-500hp, you can see why so many people opt for the K24 when it comes to engine swaps.

With that said, forced induction does, of course, put a lot of strain on any engine, especially older ones that have perhaps not been fantastically well-cared-for.

For that reason, we’d always do a thorough tear-down to ensure you have a solid base before going through the effort of forced induction.

We’d also consider going with uprated internals to save the inevitable tears once you’ve started bouncing off the limiter later on.

Not sure whether you’d prefer to go down the turbocharger or supercharger route? We’ve answered all of the questions that are rattling around in your brain in our Turbocharger Vs Supercharger – What’s Best? article.

Honda K24 Reliability & Common Issues

The K-series is a true testament to Honda’s reliability, and a well-maintained stock engine is likely to last you hundreds of thousands of miles with minimal maintenance.

But, here at Drifted, the chances of you opting for the stock route are slim, and for a lot of you, the well-maintained aspect could well be lacking a little, too. (We’re not pointing any fingers!)

Although the engine is extremely robust and durable, it does have some minor niggles, as just about every engine we’ve ever taken a look at would.

One of the main components to fail can be the timing chain sensor, but there are solutions out there to minimize the risk. In addition, the tensioners on the timing chain are known to go bad too. If this happens, you are looking at a repair bill in the neighborhood of $700 to $1200. A small price for JDM supremacy I would say! *wink*

There are occasionally issues with leaking oil seals and excessive wear on the exhaust camshaft.

Rough engine noises can often be attributed to the incorrect use of engine oil or lack of maintenance. Lack of upkeep has also been the leading cause of rattling timing chains.

Over time, this can deteriorate the VTC gear, which would likely need replacing, especially if it’s coming from the right side of the engine.

These are mostly minor niggles, and almost always come down to improper maintenance.

So, keep on top of your servicing and don’t go crazy with modifying *cough* then the lifespan is expected to be at least 2-300,000 miles.

Honda K24 Final Thoughts

Honda’s K-series engines are certainly one of the very best value-for-money choices out there right now.

We’ve compared them to V8’s several times in this guide, but in some ways, we find them even more tempting.

V8’s have often had a tough life, they’re suffering from ever-increasing inflation due to their popularity in the motorsport world, and many of them are certainly showing signs of age. Oh, and did we mention the fuel costs?

We’re not saying that every K24 out there has had an easy life, but we’d bet that Grandma hasn’t been doing quite so many burnouts in her Accord.

If you’re looking for the best K24 engine right out of the box, then you’ll want to take a look at the K24A2.

However, given the convenience of upgrades, modifications, and matching parts between the various K-series engines, we certainly wouldn’t stress too much about making sure we got our hands the A2.

Given how kindly they also take to forced induction, they certainly have to be a consideration for those of you that are going down that route.

With the BMW gearbox conversion, it’s also an extremely convenient swap when it comes to RWD cars, and even more so for mid-engine cars. This 1000-horsepower K-swapped NSX is a perfect example of this.

Honda K24 Conclusion

Honda’s don’t always have the most favorable reputation within the tuning scene, but both the Honda K24 and the K20 certainly deserve a lot of respect, and we think there’s a good chance we may well be seeing even more of them in the years to come.

If that’s the case – we’re not complaining!

We hope that we’ve covered everything you could want to know about the fantastic Honda K24 engine in this guide.

If you’re not entirely sold on the Honda K24 just yet, then make sure you also head over to our Honda K20 guide to help you decide. You should also check out our B16 and D16 guides.

If you’re also interested in the other engines that Honda has to offer, make sure you check out our comprehensive Honda B-Series guide.

Thank you for reading our Honda K24 guide.

If you enjoyed this article, then please share it with the buttons at the side and bottom of your screen. If you’ve found this information useful, then please take a moment to share it with other Honda, or engine swap enthusiasts. We really appreciate your support.

Photography credits

We thank the following entities for the use of their photography in this article:

• kevos2k on S2KI
• Reece Mikkelson on Flickr
• Jason Hoang on Flickr
• Zac Shee on Flickr
• Tennen-Gas on Wikimedia Commons
• Hatsukari715 on Wikipedia
• Engine Swap Depot

The post Ultimate Honda K24 Guide – Everything You Need To Know first appeared on Drifted.com.

• A brief history of Toyota’s GR series
• 2GR-FE Engine Specs
• Which cars came with the 2GR-FE?
• Differences Between the 2GR-FE and 2GR-FSE
• 2GR-FE Upgrades and Tuning
• 2GR-FE Common Issues
• What’s Next for Toyota’s 2GR Engine?
• Conclusion

In a hurry? You can click on a particular section within this article. Otherwise, scroll down as we look at Toyota’s 2GR-FE engine.

To whet your appetite, here is a video of a full carbon fiber-bodied, supercharged 2GR-FE powered Lotus Evora!

Introduction

Having already covered some of Toyota’s most common engine platforms, such as the 1UZ and the 2JZ in our guides, we opted to look at one of their modern offerings, this time with the lesser-known 2GR-FE.

It certainly may not be the first engine swap that comes to mind for many car enthusiasts, but the 2GR-FE has gained notorious popularity within certain scenes. It has become among the most popular choices for Toyota MR2 and midship Lotus owners.

In the modern-day, where manufacturers aim for smaller displacement engines whilst generating as much power as possible with forced induction, the 2GR has maintained the much-loved traditional route.

Its 3.5L six-cylinder all-aluminium design helps to keep the weight down, which makes it a popular choice for small, light cars.

Check out this fascinating exploded animated video showing exactly how the 2GR-FE works:

Given its naturally aspirated design, you probably assume it comes with disappointing power figures. However, with a reported output of 295-314hp and 248-260ft/lb torque being produced in stock form, it’s certainly capable of shifting!

Not only is it light with an impressive amount of power to match, but it’s also earned notoriety for its reliability and is undoubtedly an engine built to last.

We will look at this underrated powerplant in our guide and provide you with everything you’ll need to know. Whether you’re looking to carry out an engine swap or purchase a car with the 2GR sitting snug in the bay waiting to be used to its full potential, we’ve got you covered!

A brief history of Toyota’s GR series

Let’s take a look at the history of Toyota’s GR engine series:

1GR-FE

First released in 2002 for the Toyota 4Runner/Hilux Surf as well as the Land Cruiser Prado, the 1GR-FE is a 4.0L engine designed for longitudinal mounting in both RWD and 4WD vehicles.

With an output of 236hp and 266ft/lb torque in its original stock form, it utilized Toyota’s VVT-i variable cam timing system on the intake cam and a compression ratio of 10.0:1. Its service weight, including fluids, is 166kg (366lbs).

In a later revision, they took the power output to an impressive 285hp and 289ft/lb torque with the addition of Dual VVT-i timing.

Both revisions are still being used today, with some minor alterations on the VVT-I engine, which is still used in the Toyota Hilux.

With the Hilux being the only car to still use the traditional VVT-i, over seven models in the Toyota/Lexus family are still running the dual-VVT-i version in the present day.

Toyota Racing Development (TRD) produced a supercharger kit for the 1GR-FE, available on the TRD models of the Tacoma, 4Runner, and FJ Cruiser, but this was later discontinued.

2GR-FE

For the 2004 model year, the 2GR-FE was released to the market, and unlike the 1GR, the 2GR was created for transverse mounting.

With Toyota opting for a 3.5L displacement this time, the bore from the 1GR-FE remains at 94mm, but the stroke is reduced to 83mm from 95mm.

Output for these engines varied depending on the vehicle, so it’s worth checking if you’re looking to source one. Power figures were generally quoted as between 295-314hp with 248-260ft/lb torque.

Similarly to the 1GR-FE, the 2GR-FE features an open-deck cast aluminium alloy cylinder block, and spiny-type cast iron cylinder liners. Inside there’s a forged steel crankshaft with five counterweights and forged connecting rods.

The valves are driven by roller-follower rocker arms, low friction roller bearings, and a unique concave cam lobe design to increase valve lift over the traditional timeless lifter-type system of the 1GR. This increases the overall cylinder head height to accommodate the slightly taller roller rocker system.

Each cylinder head is comprised of three pieces. The valve cover, the camshaft sub-assembly housing, and the cylinder head sub-assembly, are all made of aluminium alloy.

As with the later 1GR-FE engine, they have utilized the modern Dual VVT-I system again. This helps to increase the power and torque whilst still managing to maintain ideal efficiency.

The 2GR is 3kg lighter than the 1GR, with a service weight of just 163kg (395lb).

Several superchargers were created for the 2GR-FE, and Toyota Racing Development (TRD) once again offered its version in the 2007-2009 TRD Aurion. Lotus utilized the supercharged 2GR-FE in their Evora S and Exige S, and Bolwell is still using their Sprintex supercharged 2GR-FE in the present day on the Nagari 300 models.

2GR-FSE

The 3.5L 2GR-FSE engine was released in 2005 and is most commonly found in the JDM Toyota and Lexus models.

This updated version features Toyota’s D-4S twin injection system, combining direct and traditional port injection. Direct injection lowers the tendency to knock and increases performance by reducing the charge intake temperature.

Twin injection typically requires separate low and high-pressure fuel systems. Still, Toyota worked around this with new cylinder heads that featured high-pressure direct fuel injectors positioned at the intake valves’ outer side.

Given its ability to provide better cooling by using these methods, they increased the compression ratio up to 11.8:1, which meant that the 2GR-FSE engine could produce 304-314hp at 377-380ft/lb torque in stock form.

With these additions, the weight increased to 174kg (384 lbs) but would become a highly appreciated engine, earning itself a position in Ward’s 10 Best Engines list for 2006, 2007, 2008, and 2009.

There was only one Supercharged variant of the 2GR-FSE, found in the 2009 Toyota Mark X +M Supercharger, capable of producing 355hp!

2GR-FKS

The 2GR-FKS was the evolution of the 2GR-FSE and the most recent in the GR engine family. It was released to the market for the 2015 model year.

Keeping with the 3.5-liter V6, this succeeded the 2GR-FSE in their Lexus cars before also finding its way under the hood of several modern-day Toyotas.

Featuring the latest in Toyota’s technologies, the 2GR-FKS can switch from Otto to an Atkinson cycle to improve fuel economy, thanks to the VVT-iW on the intake camshafts. This combines the D-4S system from the 2GR-FSE with the simulated on-demand Atkinson cycle.

Several changes were made, including the coil-on-plug ignition system and the exhaust manifolds, which were integrated into the cylinder heads, and the EGR circuit is now cooled.

Once again, various power figures were achieved for this engine depending on the model, with the Tacoma producing just 278hp at 265ft/lb torque, yet the Lexus RX 350 capable of a far more respectable 295hp and 267ft/lb torque.

The Lexus IS350 and GS350 win this time, though, producing 311hp at 280ft/lb torque.

Toyota later released a 2GR-FXS model, a hybrid version of the 2GR-FXS, found in the Lexus RX 450h and the Toyota Highlander.

If you want to know more about the GR family, there’s also the 3GR, 4GR, 5GR, 6GR, 7GR, and 8GR! We may create separate guides for these engines in the future. However, for now, we will move on to the specs of the 2GR-FE.

2GR-FE Engine Specs

Featuring an open-deck V6 design with an all-aluminium cylinder block and cylinder heads, which helped save weight, increasing fuel economy. Toyota incorporated its DOHC design alongside 4-valves per cylinder, providing increased power and efficiency.

The 3.5 L (3,456 cc) 2GR’s open deck does wonders for the cooling efficiency, whilst the dual VVT-i (Variable Valve Timing with intelligence) system increases the power and torque. Later updates to the engine also utilized the new direct fuel injection system, allowing for increased power gains.

• Power figures: Output for these engines varied depending on the vehicle, so it’s worth checking if you’re looking to source one. Power figures were reported to be between 295-315 hp (227-236 kW) with 248-260 ft/lb torque.
• Materials: The 2GR-FE features an open-deck cast aluminium alloy cylinder block and cylinder head.
• Service weight: 163 kg (395lb).
• Stroke: 83mm
• Cylinder Bore: 94mm
• Compression ratio: 10.8:1, 11.8:1, 12.5:1 13:1.

Which cars came with the 2GR FE?

Although it’s not one of the most commonly found swaps, the 2GR-FE has frequently found itself being used for a wide variety of purposes. It has become a popular choice among various generations of MR2 owners looking to modernize their power.

Given that Lotus fitted supercharged variations to their Exige S and Evora S models, it proves how well suited this can be for lighter mid-engine cars.

Some popular Japanese vehicle models that utilize this engine include the Toyota Sienna minivan, The Toyota Venza,  the Toyota Harrier and The Toyota Avalon. We have included a complete list of vehicles down below.

VVT-i engine cars:

• 2002-2009 Toyota 4Runner / Hilux Surf (GRN210/215)
• 2007-2011 Toyota Land Cruiser (GRJ200)
• 2002-2009 Toyota Land Cruiser Prado (GRJ120/121/125)
• 2004-2015 Toyota Tacoma (GRN225/245/250/265/270)
• 2005-2015 Toyota Hilux (GGN10/20)
• 2005-2006 Toyota Tundra (GSK30)
• 2006-2009 Toyota Tundra (GSK50/51)
• 2005-2015 Toyota Fortuner (GGN50/60)
• 2006-2009 Toyota FJ Cruiser (GSJ10/15)
• 2015-present Toyota Hilux

Dual VVT-i engine cars:

• 2009-present Toyota 4Runner (GRN280/285)
• 2009-2017 Toyota FJ Cruiser
• 2010-present Toyota Tundra (GSK50/51)
• 2012-present Toyota Land Cruiser
• 2012-present Lexus GX 400 (GRJ150)
• 2012-2017 Toyota Aurion (GSV50)
• 2015-2017 Toyota Alphard/Vellfire (GGH30/35)
• 2006-2019 Toyota Estima/Previa/Tarago (GSR50/55)
• 2014-present Toyota Land Cruiser 70
• 2015-present Toyota Fortuner
• 2009-present Toyota Land Cruiser Prado (GRJ150/150R/155)

Differences Between the 2GR-FE and 2GR-FSE

There’s no doubt that the 2GR-FE is an impressive lump capable of far more power than it left the factory with, so why is the 2GR-FSE often seen as the superior alternative?

1. Twin Injection

With the 2005 launch of the successor to the 2GR-FE engine, the 2GR-FSE, the main addition between the two was the D-4S twin injection system. This combined both direct injection with traditional port injection. The inclusion of these two components not only provided increased power but also improved the economy at the same time.

In a world driven by the need to keep up with continuously tightening emissions laws, we’re all for manufacturers squeezing more power whilst also keeping the emissions lower, especially if it doesn’t involve going down the soul-destroying battery route!

Direct injection engines usually require an in-engine mechanism, such as swirl pots, to increase air turbulence in the engine. Still, in the FSE port, injection has been included to improve the air-fuel mixture inside the cylinder.

This is achieved by a dual-fan spray pattern for the new Toyota injector designed specifically for this engine. This gives off a dual-fan spray pattern perpendicular to the piston travel with wide dispersion in the cylinder. This aids the air/fuel mixture, improving power, efficiency, and emissions.

2. Weight

The FSE is heavier than the 2GR-FE (174kg vs 163kg), and both have been quoted as capable of producing up to 314hp (360 Nm), so the FE is seemingly the winner when it comes to the power-to-weight ratio.

They’re both undoubtedly fantastic engines, with the FSE being the more impressive choice. There’s certainly a valid reason that the 2GR-FSE found itself on the Ward’s 10 Best Engines list for four consecutive years.

If you’re unsure which one suits you best, chances are, depending on your location, that the 2GR-FE will be the far more convenient option when it comes to sourcing.

With the FE, it was traditionally found in cars that will be far cheaper on the current market, a lot of which were available in the U.S. With the FSE, you’re mostly limited to the higher-end Lexus and Toyota models, most of which were purely sold on the JDM market, such as the Toyota Mark X.

2GR FE Upgrades and Tuning

With power figures of up to 314hp quoted from the 2GR-FE, it’s certainly not a slow, naturally aspirated engine in stock form, but its potential certainly doesn’t end there.

Not only are there convenient upgrades to unleash even more power, but it’s also a highly reliable engine when upgraded, provided it’s well-maintained and tuned correctly.

Although trying to squeeze more power out of the engine in stock form is likely to be expensive with little power gain for the money, you can buy uprated pistons and camshafts, along with breathing mods such as cold air intakes and a full-exhaust system.

With tuning, you can expect to achieve a maximum of around 320-330hp with these upgrades depending on the engine’s power output from stock.

Forced Induction

If you’re like us, and you’re looking for real gains for your money, supercharger kits are likely to be the best option off-the-shelf. TRD and HKS have developed kits for the 2GR, and with stock internals, this should enable you to achieve more than 350hp.

If you’re not looking to run an off-the-shelf TRD or HKS kit, the ROTREX superchargers are also commonly used and can safely run around 6psi of boost, which will see gains of around 40hp and 40ft/lb torque on a stock engine.

Of course, further power gains are waiting after that with the usual breathing modifications such as an air filter and exhaust.

If that’s not enough, you can consider upgrading the supercharger, throttle valve, injectors, pistons, and engine management. You’re likely to run into considerable costs with doing so, but it’ll undoubtedly be a solid platform to achieve impressive numbers.

Turbocharging is also an option, and we’ve heard of over 800hp+ being produced using a stock bottom-end 2GR with extensive supporting modifications on a twin-turbo setup running 18psi of boost, which is highly impressive!

Don’t believe us? Then, have a listen to this tuned 2GR-FE powered Toyota MR2

2GR FE Common Issues

There’s no doubt that the 2GR-FE is a testament to the solid, reliable engines which the Japanese are notorious for creating, and it had very few significant problems during its lifetime.

Many owners have reported over 200,000 miles of trouble-free motoring from a well-maintained engine, and since it uses a timing chain, you won’t need to worry about replacing the timing belt frequently.

Despite its reliability, nothing is perfect, and we’ve had to dig deep to find some problems that you may want to look out for when purchasing.

1. Oil Leaks

If you’re noticing an oil leak, the chances are the culprit is the oil tube in the VVTi system. This was made from an iron-rubber-iron component that can sometimes perish over time. This was a common issue with pre-2010 Toyota engines, and there are now all-metal replacements to resolve the issue.

2. Idler Pulley Issues

Squealing or load rattling from the idler pulley is another issue that may need to be addressed. However, Toyota has also resolved this issue by creating a heavy-duty equivalent should you ever need to replace it.

3. Grinding Sounds after startup

There are reports of an engine noise that sounds almost like grinding after startup. This is usually caused by the VVTi system, which may require repair, so we advise listening out for this if you intend to purchase a 2GR-FE.

4. Low revs at idle

If you’re noticing low revs at idle, this has an easy fix of simply cleaning the throttle body, and this is advised to do every 30,000 miles to avoid the issue surfacing.

It is a good idea to upgrade components like water pumps, ignition coils, etc., as these are also known to fail in this engine.

These are all minor niggles in the grand scheme of things, and chances are you won’t even encounter them during your ownership. We always advise considering preventive measures, such as upgrading to the improved OEM Toyota parts, to begin with.

If you take good care of it, a Toyota 2GR-FE will serve you reliably for around 200,000 miles or 320,000 km.

What’s Next for Toyota’s 2GR Engine?

Since the release of the 2GR-FE, Toyota has continued to develop the awesome 2GR range through to the present day.

With the supercharged 2GR-FE most recently finding its way into the Lotus Exige Cup for their new 2018 model, it’s far from the end, even for the FE. The stock powerplant is also still being used in several production cars, such as Toyota’s Estima/Previa/Tarango range in the present day, and Lotus are still using it in the Evora.

With Toyota still using the 2GR-FSE in several production cars, such as the IS350, it looks as though they may head towards integrating the 2GR-FKS into more of their range soon.

Many of their most recent releases, such as the 2017 Toyota Camry and 2018 Lexus RC 350, have already begun using the FKS. Despite the hybrid FXS being introduced, which is based on the FKS engine, it would appear that we’re not yet going to see a true replacement for the FKS anytime soon.

Conclusion To Our 2GR FE Guide

Although the 2GR-FE is far from the most common engine swap, we always like to see different builds. JDM fans more traditionally opt for alternatives such as RB25DET’s, 1UZFE’s or 2JZ’s. Those who like to cause more controversy may add an LS engine.

2GR-FE swaps seem to be most commonly found in MR2 builds, and tuning shops were also swapping them into Lotus Elise’s and Exige’s way before Lexus realized it was a winning combination.

There’s no doubt that the 2GR-FE has fantastic power potential for a naturally aspirated engine, and if you have a little extra cash to spare, convenient supercharging options are available.

We’ve even witnessed extensive builds achieve over 800hp on the stock bottom end, albeit with extensive internal upgrades. And being a reliable Toyota powerplant, your mechanic will surely love you for having it!

With its smooth yet impressive power band and impeccable reliability, it’s easy to see why enthusiasts are opting for swapping these engines into their midship cars. We can imagine they’re heaps of fun, particularly with a supercharger strapped on.

As well as the impressive power and reliability, they can also sound pretty damn sexual! Make sure you head to our additional content below to check out some of our favorite sounds.

If you feel that the 2GR-FE is your engine choice, we always love to see crazy engine swaps that our fans have carried out, so feel free to drop us a line and show us your build. Who knows, we may even end up featuring it!

Additional 2GR FE Related Content

We’ve selected some of our favorite 2GR-FE YouTube picks for your viewing pleasure!

When we said that the 2GR-FE had the potential to sound sexual, we weren’t lying!

Want to see a 2GR-FE pushed to the limit? This one hits 8,000 RPM!

Check out the TRD Supercharger in action on this MR2.

A crazy Celica drag build. We’d love to see more of this!

Interested to see some of the best engines Toyota has to offer? This is an excellent guide.

You can check out everything you need to learn about Toyota’s 1MZ-FE engine here!

If you’re looking at other Toyota engines, check out our 2AZ-FE and 1GZ-FE engine guides.

Photography credits

Drifted would like to extend thanks to the following sources for the use of their images:

• Wheelsage
• CarThrottle
• I Heart Japanese Cars
• Toyota Tumblin’
• Swindon
• Paultan

The post Toyota 2GR-FE Guide – Everything You Need To Know first appeared on Drifted.com.

• Introduction
• 13B History
• 13B Engine Specs
• How Does A Rotary Work?
• Pros and Cons
• Tuning Potential
• Common Issues & Reliability
• Crazy 13B Swaps
• Conclusion

12B Engine Introduction

The 13B rotary engine is one of the most incredible feats of modern engineering, with Mazda staying loyal to the masterpiece for over thirty years.

There’s no question that the 13B was at the forefront of Mazda’s rotary loyalty, and we’re going to explore everything you could need to know about the insane powerplant.

Thanks to the rotary’s design, these compact engines can fit into the smallest engine bays and are capable of producing a mighty punch, making them immensely popular with tuners across the globe.

Potentially facing bankruptcy, Mazda took an enormous gamble by launching the first-ever rotary-powered RX to the market in 1978. Since then, it’s gone on to become one of the highest-regarded engine lineups in automotive history.

After reaching America in 1993 under the hood of the jaw-dropping RX-7 FD3S, it was the incredible turbocharged 13B-REW that would become the most sought-after engine in the 13B lineup -immediately overshadowing its predecessors.

Since then, from hot rodders to bikes and even light aircraft – the 13B has found its way into just about anything imaginable.

Despite Mazda opting to cease 13B production in 2012, this hasn’t stopped enthusiasts from continuing to prove what the legendary motor is capable of achieving.

On paper, the 13B is a petrolhead’s dream. Mazda delivered affordability, impressive power, and insane noises into the automotive equivalent of a bikini-clad supermodel to the masses.

Now that the rotary engine has had more than fifty years of revolution, we’re going to take an in-depth look at the ‘BRAP-BRAP’ fire-breather.

Mazda 13B Engine History

Alongside the comparably sensible Miata, Mazda felt they had to add something a little bit crazier into the mix with the RX7 to make it stand out, and with stunning looks and the inclusion of the 13B – it certainly did!

You’d be forgiven for assuming that the initial 13B engine was the predecessor of the 13A, but they bear no real relation.

The 13B bears more similarities to the 12A engine found in the Mazda RX-3. However, the longer 13B benefited from additional displacement from the thicker rotor design, with each chamber displacing 654 ccs, bringing the total capacity to 1,308 ccs (1.3L.)

The success of the impressive 130 horsepower 1,146cc 12A engines was further boosted by Mazda’s ability to provide their customers the privilege of cheaper annual road tax, thanks to the creative possibility of getting the engine under the upper-tier 1.5-liter tax bracket, despite equal performance.

As Mazda built upon the success of the already-popular turbocharged 12A, the game-changing 13B was born. Little did they know at that time, but it would soon become the best-selling rotary engine ever produced.

Here’s where it started.

13B AP

Although many think that the 13B’s origins lie with the RX-7, the far lesser-known Mazda Luce AP (Anti-Pollution) was the first car to take advantage of the first emission-friendly, high-performance 13B in 1973.

The Mazda 13B AP engine can be found in the following cars:

• 1975-1980 Mazda Cosmo AP
• 1974-1977 Mazda REPU (Rotary Engine Pickup)
• 1974-1977 Mazda Parkway
• 1975-1977 Mazda Roadpacer
• 1973-1978 Mazda RX-4
• 1975-1980 Mazda RX-5

13B-RESI

It was the birth of the 13B-RESI (Rotary Engine Super Injection), where the 13B finally got a real opportunity to shine.

The 135-horsepower, 135 lb/ft torque, naturally-aspirated RESI engine featured a two-level intake box, which created a supercharger-style effect, squeezing out additional power by opening and closing intake ports.

Impressively, this multiple-stage intake valve control continued to be implemented through to the final RENESIS engines.

With a 0-50 mph time of 6.3 seconds and improved economy figures over the 12B, the 13B-RESI quickly became the most sought-after rotary engine in the Mazda lineup.

The Mazda 13B-RESI engine can be found in the following cars:

• 1984-1985 Mazda HB Luce
• 1984-1985 Mazda HB Cosmo
• 1984-1985 Mazda FB RX-7 GSL-SE

13B-DEI

Next up was the 13B-DEI engine, which arrived with the second-generation FC3S RX-7 in 1986, as Mazda began to cease production of the 12A engines.

Although the 13B-DEI remained naturally-aspirated, it could push out far more power thanks to four-injector electronic fuel injection alongside improved combustion quality with a revised intake.

With this new fuel-injection system, two injectors provide for the lower rev range. The remaining two supply fuel to the upper rev range, which provides improved economy in typical everyday driving situations.

In 1989, a revision of the 13B-DEI came with the new Series 5 FC3S, which featured a higher compression ratio of 9.7:1 and revised rotors alongside further upgrades to the engine management and intake manifold.

The result was a much-improved 160 hp, which was impressive for a naturally aspirated 1.3L engine.

The Mazda 13B-DEI engine can be found in the following cars:

• 1986-1988 Mazda FC3S S4 RX-7 (146 hp)
• 1989-1991 Mazda Series 5 FC3S S5 RX-7 (160 hp)

13B-T

The 13B-T was the first real gamechanger. Although the 160 hp DEI engine was impressive, strapping a turbo to the 13B was the answer to rotary enthusiasts’ prayers.

In 1986, the ability to get 185 hp and 183 lb/ft torque from a 1.3L engine would have been unheard of, and the beloved rotary engine would become more popular than ever before.

As the later 9.0:1 compression ratio 13B-T engines found in the Series 5 FC3S RX-7 ‘GTX’ model hit the market in 1989, the mind-blowing power figures further increased – 200 hp alongside 195 lb/ft torque.

Keeping with their dual injector format, they opted for the traditional four-port intake, and tuners would soon realize that the 13B-T engine had incredible tuning potential. Many 13B-T’s were soon to be running more than 250 hp.

The Mazda 13B-T engine can be found in the following cars:

• 1986-1991 Mazda HC Luce Turbo-II (185 hp)
• 1986-1988 Mazda FC3S S4 Turbo RX-7 Turbo-II (185 hp)
• 1989-1991 Mazda FC3S S5 Turbo RX-7 Turbo-II (200 hp)

13B-RE

The 13B-RE engine never made its way into the RX-7’s engine bay in factory form, and this was reserved entirely for the top-of-the-range Series JC Eunos Cosmo model.

Although the Eunos Cosmo was known for featuring the 20B-REW engine, they also offered it with an optional 13B-RE variant, which would eventually outsell its 20B-REW sibling.

The 13B-RE featured the largest side ports of any later model engine, including the 13B-REW, alongside more substantial runners on the intake manifold.

Unlike the sequential turbos found on the later-model 13B-REW, these featured a large (HT-15) turbocharger alongside a smaller (HT-10) companion.

Only 5,000 JC Cosmos were ever sold, making the 13B-RE extremely scarce to come by, despite its desirability.

The Mazda 13B-RE engine can only be found in the following car:

• 1990-1995 Eunos Cosmo

13B-REW

The 13B-REW certainly needs no introduction!

Despite its fantastic family tree prior, the REW is the holy grail of 13B engines, found in one of the most popular JDM cars of all time – the Mazda RX7 FD3S.

Straight out of the showroom, the lightweight, high-output 13B-REW was capable of a hugely impressive 255 hp, before later versions would go on to provide a whopping 280 hp – in stock form, from a 1.3L engine!

Unlike the previous models with two different size turbos, Mazda went all-out for this engine, with two gigantic Hitachi HT-12’s.

Mazda sought a responsive powerband with minimal lag for the REW engine, opting for the HT-12’s to deliver power sequentially.

The first turbo spools up in the lower end of the rev-range, and the second turbocharger, which up until this point receives minimal gases, later joins the party at around 4,700 rpm.

What’s unusual about the boost delivery is that the initial pressure is 10 psi, before dropping to 8 psi around 4,700 rpm where the second turbo kicks in as they then spool their way back up to 10 psi to the 8,000 rpm redline.

As awesome as the FD3S’ power delivery may be, it certainly takes some getting used to if you’re looking to maximize its potential.

When it came to the powerplant itself, it included hardened apex seals, integrated to handle the higher boost levels, alongside thin cast-iron rotors.

An improved intake and exhaust, lubrication system, a revised engine management system, and ignition timing all help assist the 13B-REW with performing to its full potential.

Models with the 13B-REW

The 13B-REW was an incredible showcase of what the 13B engine was truly capable of. As the engine began to fall into the hands of tuning houses across the world, the four-figure horsepower would soon be established, making it one of the most impressive motors of all time.

The Mazda 13B-REW engine can be found in the following cars:

• 1992-1995 Mazda RX-7 (255 hp)
• 1996-1998 Mazda RX-7 (265 hp)
• 1999-2002 Mazda RX-7 (280 hp)

13B-MSP Renesis

The final engine in the 13B family was also the most advanced, the 13B-MSP (Multi-Side Port) Renesis, which first surfaced in the 2004 Mazda RX-8.

Unsurprisingly by this time, emissions and fuel economy had to be two significant considerations for Mazda, with many manufacturers facing more scrutiny than ever, forcing them to pull the plug on the less efficient engines on the market.

For the Renesis engine, the exhaust ports are located on the side of the housing. The rotors are sealed differently, allowing for more improved power from their original design, alongside reduced fuel consumption and emissions.

Despite being a newer, more advanced engine, the stricter emissions laws and reliability concerns of the rotary motors in daily drivers made for more conservative power output for the final 13B, which is why the REW is typically more desirable.

Unlike the higher-powered REW engines, the various RX-8 models pushed out between 189-238 hp, with 156-163 lb/ft torque.

The Mazda 13B-REW engine can only be found in the following cars:

• 2003-2011 Mazda RX-8 (189-238 hp)

13B Engine Specs

• Manufacturer: Mazda
• Production years: 1973-2011
• Block material: Aluminum
• Engine weight: 330-337 lbs (150-153 kg)
• Displacement: 1,308 cc – 1.3L (79.81 cu in)
• Engine type: Wankel rotary engine with naturally aspirated and turbocharged versions
• Power: 135-280 hp
• Torque: 130-231 lb-ft (180-314 Nm)
• Oil change intervals: 7.5 months or 7500 miles (12,000km) (whichever comes first)

Compression Ratios:

• 9.2:1 – 1974-1978 (Naturally Aspirated)
• 9.4:1 – 1984-1988 (Naturally Aspirated)
• 9.7:1 – 1989-1992 (Naturally Aspirated)
• 8.5:1 – 13B-T 1986-1988 (Turbocharged)
• 9.0:1 – 13B-T 1989-1991 (Turbocharged)
• 9.0:1 – 13B-REW and 13B-RE (Turbocharged)

How Does A Rotary Work?

The 13B has stood the test of time and is undoubtedly one of the most incredible engines ever built. As it reinvented itself over the years, it eventually evolved into the holy grail of 13B’s – the 13B-REW.

Housed in the Mazda RX-7 FD3S from 1992 through to 2002, it was the 13B-REW that immediately took the rotary powerplant to the next level.

Gone were the valves, pistons, and connecting rods of a typical engine, and in its place was a spinning twin-turbocharged Dorito of destiny.

Initially designed by Felix Wankel in 1951, this incredible engineering feat has been provided with few opportunities in the modern-day automotive world.

Still, Mazda is determined to use it to its full potential.

You need to understand how rotary engines work to appreciate just how amazing yet straightforward they are. However, as you’ve probably guessed, it’s far easier to do so in video than writing, so we’ll let Engineering Explained give a fantastic explanation in this video:

Rotary engines can produce more power than a relative piston-based engine due to combustion occurring twice as frequently. It’s incredibly smooth, and also capable of spinning at far higher revolutions than a camshaft and valve setup.

This allows for a lightweight and compact engine capable of withstanding colossal power to make for the ultimate package.

Mazda continued using the rotary engine in their RX-8 and later featured in 2012 during Mazda2 testing, using the rotary technology as a range extender when combined with an electric setup.

Since then, patent drawings have also surfaced, proving that Mazda is still determined to continue with it, but little is known about their intentions. All we know is that there is a small, hard-working team working at Mazda to ensure that they do their best to keep the rotary dream alive.

13B Engine Pros and Cons

As much as we love the 13B, it’s certainly not without its faults, so you’ll need to decide for yourself whether the pros outweigh the cons.

Pros

• High-revving
• Impressive tuning potential
• Lightweight
• Incredibly smooth power delivery

Cons

• Potentially abused engines
• Reliability issues with tuned/badly maintained engines
• Rotary servicing costs
• Potential difficulty with sourcing parts

13B Tuning Potential

When it comes to tuning potential, there are few engines capable of rivaling the 13B.

Although the entire 13B range is capable of significant improvements, it’s the 13B-REW, unsurprisingly, that’s the most impressive.

Since rotary engines are known for their impressive upper-rev capabilities, this is where breathing mods are always essential to reduce backpressure and squeeze out a few extra horses in the process.

Bolt-on Mods

Simple bolt-on mods such as a full turbo-back exhaust, high-flow cats (HFC), and downpipes alongside an efficient air filter and intercooler will be a great start to significantly improving the breathability.

ECU Upgrade

Once you’ve got it breathing nicely, you’ll need to consider an aftermarket ECU to compensate for the altered air/fuel ratio, alongside many other additional benefits.

Many owners have managed to up the stock turbos to 15 psi with ECU tuning and supporting mods such as an uprated fuel pump and larger injectors, providing around 350 hp.

Although that might not sound jaw-dropping, it certainly provides a kick in a lightweight chassis such as the FD3S.

Turbo Upgrades

If 350 hp isn’t enough, it’ll be time to explore turbo upgrades, where you can go on to achieve up to 450 hp without suffering too much from turbo lag.

Single Turbo

For many enthusiasts, they’ll also opt-out of the twin-sequential turbo setup complications at this point, instead favoring a single turbo.

A single turbo setup will help keep the temperatures down and potentially provide additional power, depending on the configuration.

As always, there’s a potential downside of a single turbo, and that’s likely to be lag.

Some turbos, such as the GT35, can produce 10 psi at around 3,500 rpm, which isn’t that far off the stock setup.

You’ll also eliminate the weird turbo switch-over of the twins in the process.

However, as always, the bigger the turbo, the more significant the lag, so you’ll need to find the perfect balance. You’re also going to need to factor a new manifold into the budget.

If you decide to go single-turbo, it potentially opens the doors to achieving around 500 hp with supporting upgrades, allowing you to remove the excess vacuum lines and other unsightly additions that come with the twin setup in the process.

You’ll also have additional room in the bay, which gives you more space when working on the car and keeps the high engine temps down, which 13B’s are famed for.

It won’t be cheap, but we’re willing to bet it’ll be worth it!

Of course, if you’ve got the money, then the 13B’s potential is almost endless. How about 1,300 hp and 11,000 rpm – sounds good, right? Wait ‘til you hear THIS:

13B Common Issues & Reliability

We’ll be honest – we love the 13B to bits, but it doesn’t come without its potential issues, as with all rotary engines.

Typically, 13B’s are capable of being reliable (stop laughing!) as long as they’re serviced and maintained and the correct intervals.

It’s just that the service and maintenance will need to be carried out a lot more frequently than most engines, and your wallet will feel it every damn time.

As much as we’d love to have a rotary daily driver, we couldn’t justify the effort that comes with them.

A rotary in a racecar, on the other hand? Perfect.

Rotary engines, by nature, burn a lot of oil, and many unsuspecting potential owners that are copping bargain-priced RX-8‘s are aware of how much maintenance is required. For this reason, junkyards are filling up with RX-8’s.

It’s vital to keep a close eye on oil levels and oil pressure in a rotary engine. Some owners will go as far as to pre-mix oil in with the gas to prolong their spinning dorito ownership with additional lubrication.

Rotary engines are also known for getting hot. With the twin-turbochargers often crammed in the bay, things can usually get a little toastier than you’d like, which is why we believe cooling is essential, and that single turbo setups can be beneficial.

Many 13B owners will change the coolant and thermostat annually using an OEM thermostat to ensure that the temperatures are correctly maintained.

Things to Keep an Eye Out For

When you begin tuning, air/fuel ratios, boost pressure, timing, and fuel flow can be more sensitive than usual piston engines. For these reasons, we always recommend getting the car tuned by a professional is always advised right away, even with bolt-on mods.

Rotary engines are well-known for their fuel consumption. We would recommend running your 13B on the highest quality fuel available, which should be another consideration if you’re planning to use one as a daily driver.

When it comes to the RX-8’s Renesis rotary, it’s known for being made from weaker materials, which can cause it to warp over time. It can also suffer from issues with the apex seals.

RX-8’s often got a bad rep as new owners had no idea what they were getting themselves in for when purchasing these cars as a daily driver and expecting to carry out typical maintenance.

You can use this to your advantage to grab yourself a bargain, but we would tread very carefully when buying a used rotary engine that doesn’t come with a comprehensive service history.

It may be wise to consider budgeting in an engine rebuild if you decide that a 13B will be the ideal choice for your next car to ensure peace of mind and avoid disappointment further down the line.

Crazy 13B Swaps

We couldn’t resist scouring the interwebs for some of our favorite 13B swaps.

Rotary engines are thankfully a great weapon of choice for race cars, so prepare yourself for some eargasmic rotary action, with some surprises along the way!

13B AE86

The Need For Speed D-Mac 86 never got the track time that it deserved in the drift scene, and despite its short-lived success, it was one of our favorite drift cars of all time. That idle tho!

13B C5 Corvette

Check this video to find out the perfect way to wind up an LS owner!

13B Kei Truck

We adore Kei trucks here at Drifted, and this insane 13B swap is up there with the best.

13B VW Beetle

When you’ve got an unreliable Beetle, what better swap than a 13B? Actually, on second thoughts…

13B Toyota Starlet

Here’s one for our drag racing fans, but we’re willing to bet it’ll appeal to anyone. Is there anything better than watching a 13B-powered 1982 Starlet achieving a 7-second quarter-mile?!

13B Suzuki Samurai

We can’t stop watching this thing – it’s absolutely nuts!

13B Mini

Whenever there’s an engine swap opportunity, you can pretty much guarantee someone out there was crazy enough to fit it to a Mini – this must be absolutely rapid.

13B Drag Bike

It’s not just cars that get treated to 13B swaps.

13B Aircraft

Who says you need to stay on the ground with a 13B? We weren’t kidding when we said there were some surprises in-store!

Conclusion

Although it’s one of the most incredible engines ever built, the 13B isn’t going to be the ideal choice for everyone.

There’s incredible potential waiting to be unlocked from these high-revving engines, and they have the added benefit of sounding far more impressive than the likes of some of the equivalent-power JDM legends such as the 2JZ-GTE and RB26DETT.

If you’re lucky enough to get your hands on a 13B, we would always recommend getting a rebuild and a decent tune to ensure it’s running optimally.

As long as you’ve got a reliable setup and you’re carrying out the correct maintenance procedures, the 13B likely to be trustworthy and reliable.

Would we recommend using a 13B every day? For us – no. But there’s absolutely no doubt that it makes for an incredible weekend, or track/drift engine.

For many hardcore motorsport enthusiasts, the care and attention required by the 13B will be worth the effort. Sure, it’s not the easiest of engines to maintain, but the rewards are undoubtedly worth it once you’ve got an insane rotary screaming in your ears!

So, there we have it! We hope that we’ve covered everything you could want to know about Mazda’s 13B engine in this guide.

Thank you for reading our 13B Engine guide.

If you enjoyed this article, please share it with the buttons at the bottom of your screen. If you’ve found this information useful, then please take a moment to share it with other Mazda and rotary enthusiasts. We appreciate your support.

Photography credits

We thank the following entities for the use of their photography in this article:

• Final Form on Flickr
• Final Form on Flickr
• Final Form on Flickr
• Tomás Del Coro on Flickr

The post Ultimate 13B Rotary Engine Guide first appeared on Drifted.com.

• Introduction
• Engine Specs & Information
• Which Cars Have The 2UZ-FE engine?
• Modifications & Tuning Potential
• 2UZ-FE vs 1UZ-FE
• Reliability & Common Issues
• Engine Swaps
• Conclusion

Introduction to the Toyota 2UZ-FE

As its older brother, the 1UZ-FE, steals the limelight, Toyota’s 4.7-liter 2UZ-FE has become the diamond in the dirt.

With the 2UZ being the second engine in Toyota’s legendary ‘UZ’ family, they opted to switch things up for this generation, making the 2UZ far less undesirable for many tuners.

Toyota built the 1UZ for cars such as the Lexus GS400, the Toyota Ariston, and the Toyota Soarer.

However, for the 2UZ, their aim was different. Instead of cars, they would provide a heavier, more reliable engine with plenty of torque for their SUV and truck lines.

As you’ve probably realized, this doesn’t look like an ideal combination for your lightweight drift car.

While the 1UZ could push out 300 hp with its later VVTi variation, the 2UZ equivalent only managed to achieve 271 hp.

Torque is where the 2UZ excels. With 315 lb/ft on tap at 3,400 rpm compared to the 310lb/ft at 4,000 rpm from the 1UZ, you can see that there are benefits to be had from both of these impressive engines.

Although it’s easy to look at the negatives, the increased displacement and increased torque that the 2UZ provides are certainly a bonus, but that’s not all. The 2UZ has far more to offer.

2UZ-FE Engine Specs & Information

Toyota’s 2UZ-FE engine is the second-born in Toyota’s ‘UZ’ family and is a 4.7 L (4,663cc) water-cooled, naturally aspirated V8 with a pre-2007 compression ratio of 9.6:1 and 10.0:1 for post-2007.

Production began in 1998 by the Toyota Motor Corporation, before it came to an end in the US in 2011, with the Hong Kong market continuing production until 2012.

Engine code breakdown:

• 2 – 2nd Generation (UZ) engine
• UZ – Engine family
• F – Economy narrow-angle DOHC
• E – Sequential MultiPort Fuel Injection (SFI)

The 2UZ-FE utilizes eight cylinders in a V-arrangement with a bank angle of 90-degrees with a firing order of 1-8-4-3-6-5-7-2.

Toyota’s decision to opt for a cast-iron block came as a surprise to many, with both the 1UZ and the later 3UZ-FE engine featuring aluminum blocks. The cast-iron block was not only cheaper to produce but also provided improved reliability.

Given that the 2UZ had been designed with pickups and SUVs in mind, reliability was a more significant concern than weight, and at 255kg (562lbs,) it certainly wasn’t light, either!

Besides the cast-iron block, the 1UZ and 2UZ are very similar in both design and dimensions, with the significant differences being the increased bore and stroke.

Paired with the cast-iron block are aluminum-alloy cylinder heads with a cross-flow type intake and exhaust layout and pentroof-type combustion chambers. These have 32 valves (4 per cylinder) and steel solid valve lifters, which require periodic valve adjustments.

The 2UZ operates the same as the 1UZ when it comes to camshaft rotation, with the intake camshafts being driven by a timing belt while a gear on the intake camshaft engages with a gear on the exhaust camshaft to drive it. The valvetrain design is the same for the 1UZ and 2UZ.

Inside the 2UZ are forged and sintered connecting rods and high temperature-resistant aluminum alloy pistons with full-floating piston pins.

For engines beyond the 2007 model year, Toyota made a significant change to the 2UZ-FE with the integration of VVTi (Variable Valve Timing-intelligent System,) which provided an impressive increase in horsepower, torque, and fuel efficiency.

While pre-2007 versions of the engine featured a cast-aluminum intake manifold, they would replace this with a plastic intake manifold for the post-2007 variations, which many enthusiasts swap out for superior aftermarket alternatives.

They also made adjustments to the pistons, which were now lighter, and introduced oil jets inside the cylinder block to cool them.

With all these changes, the compression ratio went from 9.6:1 for pre-2007 models to 10.0:1 for the later VVTi variants.

With these upgrades, the 2UZ-FE would receive a power increase of 52 additional horsepower and 22 lb/ft (30 Nm) torque.

4Runner engines (made in Japan) are often the most sought-after for US buyers, which provide stronger internals and block. They also feature a smaller manifold to the US engines due to emissions and engine bay restrictions, and they also feature an electronic throttle.

From 2008 onwards, the 4.7-liter 2UZ would become gradually phased out, with Toyota’s newer 5.7-liter 3UR-FE and 4.6-liter 1UR-FE engines taking its place.

Toyota 2UZ-FE Engine Specifications:

• Production years: 1998-2011 (2012 in Hong Kong)
• Cylinder block material: Cast-Iron
• Cylinder Head Material: Aluminum
• Fuel type: Gasoline
• Fuel system: Fuel injection
• Valvetrain: DOHC, 4 valves per cylinder
• Piston Stroke: 84 mm (3.3 in)
• Cylinder Bore: 94 mm (3.7 in)
• Compression Ratio: 9.6:1 – 10.0:1
• Displacement: 4664 cc
• Power: 271-282 hp, 315-325 lb/ft VVT-I / 230-232 hp, 300-311 lb/ft Non VVT-i
• Engine weight: 562 lbs (255.5 kg)
• Engine oil capacity: 6.4L (0.4L – oil filter)

Which Cars Have The 2UZ-FE engine?

Since Toyota produced the 2UZ-FE with SUV’s and trucks in mind, it won’t come as a big surprise that there aren’t any cars on this list.

Thankfully, enthusiasts were keen to prove its capabilities further down the line, and it became a consideration for cars such as the Toyota Supra, which we’ll cover later.

These are the cars that left the showroom with the 2UZ-FE engine under the hood:

• Lexus GX 470 (2002-2009)
• Lexus LX 470 (1998-2007)
• Toyota Land Cruiser (1998-2011)
• Toyota 4Runner (2002-2009)
• Toyota Tundra (1999-2009)
• Toyota Sequoia (2000-2009)

The 2000-2003 Toyota Tundra and Sequoia and the 1998-2003 Lexus LX470 received optional extra bolt-on supercharger kits from Toyota Racing Development (TRD.)

2UZ-FE Modifications & Tuning Potential

Much like the 1UZ, off-the-shelf aftermarket parts are nowhere near as convenient to source as the likes of the 2JZ.

But, if you’re determined enough, you’re sure to find plenty of upgrades to unleash the true power potential of this underrated engine.

Thanks to their similarities, most of the parts of the 1UZ will also fit straight onto the 2UZ.

As you’ve probably guessed, although the weight of the 2UZ is its downfall, the cast-iron block is pretty much bulletproof when it comes to handling substantial horsepower figures.

This not only means that you could potentially use the 2UZ’s cast-iron block alongside the 1UZ’s components to get the best of both worlds, but it also means that the aftermarket selection for most parts will fit both engines.

Given that the 1UZ’s aluminum block can handle over 1,000 hp, it’s anyone’s guess what the capabilities of the significantly stronger 2UZ cast-iron block could be.

We’ve heard of figures around the 1,500 hp mark still being a safe bet, which ridiculously impressive.

As you’ve probably guessed, this makes the engine perfect for forced induction.

However, it’s worth mentioning that although Toyota squeezed additional power out of the 2UZ with the addition of VVTi, they also used thinner connecting rods, which could be a potential weakness.

2UZ-FE Forced Induction

Firstly, you’ll want to check out our Turbocharger Vs Supercharger – Who Wins? article to help you decide which forced-induction method is ideal for your needs.

Toyota knew that the 2UZ was capable of handling forced induction, which is why they provided several models with a TRD supercharger upgrade that easily bolts on, which would now provide up to 350 hp.

However, when TRD opted to discontinue the kit, many enthusiasts began speculating that this was due to multiple engine failures, even at the recommended ‘safe’ boost levels.

Many believe that this is due to the US-built 2UZ engines were built with a different metallurgical formula in the rods, which leaves them far more prone to fractures or cracks than the stronger Japanese (JDM) 2UZ’s used during testing.

The belief that the JDM 2UZ’s were provided with superior internals from the factory has led to the 4Runner 2UZ’s being the ‘holy grail’ for those looking to carry out an engine swap. Although we’re yet to see any proof, we have no reason to doubt this could be the case.

Since 4Runner 2UZ’s are hard to source, the most popular and convenient option is to go with the 2002-onwards engines, but you’ll want to ensure that you replace the plastic manifold if you intend to run forced induction.

When it comes to fitting an aftermarket supercharger, you’ll need to ensure that you have breathing mods such as a cold air intake and exhaust alongside additional supporting mods such as fuel injectors.

With these simple yet essential bolt-on upgrades, the 2UZFE can effortlessly push out around 375 horsepower with a low-boost setup, with 6psi being the safe-zone for reliability.

Suppose you’re willing to put in additional work. In that case, over 450 horsepower with a little more boost isn’t uncommon.

For a fully-built engine (which certainly won’t be cheap), four-figure horsepower numbers could undoubtedly become a possibility.

If you’re keen to unlock the full potential that the 2UZ has to offer, you’ll want to take a look at some of the awesome twin-turbo setups that are floating around online:

2UZ-FE vs 1UZ-FE

Although there are some vital differences between the two engines, they’re also incredibly similar.

Toyota built upon the tried-and-tested 1UZ-FE, and then perhaps cut the costs with the cast-iron block, but at the same time also made it more reliable while increasing the displacement from 4L to 4.7L.

Along with the reliability improvements, further benefits in the low-end torque department made this the perfect engine for their truck and SUV range, but not so great for cars, especially with the horsepower decrease.

Although the weight gain made it far less desirable for engine-swappers looking for a lightweight bargain, the cast-iron block favored those aiming for substantial power figures from their builds.

So, if you’re looking to carry out minimal upgrades, the 1UZ could likely be the better consideration. If you’re looking at crossing the four-figure horsepower bracket, then the cast-iron 2UZ may well be the better choice.

2UZ-FE Reliability & Common Issues

Given that the 1UZ-FE had incredible reliability and that the 2UZ-FE improves upon that thanks to the lower power output, combined with a cast-iron block, it should come as no surprise that the 2UZ is ridiculously reliable.

Toyota is well-known for producing some of the world’s most reliable engines. The bombproof combination of the 2UZ will allow it to clock hundreds of thousands of miles when maintained correctly.

In each of our previous engine guides, we’ve mentioned every engine has issues and will get the occasional check engine light, but with the 2UZ, we’ve, rather impressively, struggled to find any significant flaws.

That doesn’t mean that you can get away with not maintaining your 2UZ, but it does mean that if you’re willing to keep up with the necessary general maintenance, we’d expect to see your 2UZ last beyond 300,000 miles.

Typical maintenance will include oil changes at the recommended intervals, alongside occasional valve adjustments. Full-service history is always desirable when buying any engine used to ensure that servicing was carried out at the correct intervals.

The essential replacement part that you’ll need to consider is the toothed timing belt, which should be done at 50-60,000 mile intervals, but if there’s no history of a change done for several years, we’d recommend doing so.

If the timing belt breaks, then you run the risk of the pistons hitting the valves, which, as you can imagine, the resulting friction isn’t going to be ideal!

As we mentioned in our forced induction section, the JDM 4Runner engines are typically the most desirable on the market if you’re looking for the ultimate 2UZ.

Many enthusiasts believe that the JDM motors used superior metals to the US variants. Others believe it to be an urban legend.

VVTi engines are unsurprisingly the most popular due to the power upgrades and improved fuel economy, and these can usually be found in the post-2005 model years.

Forced induction will, of course, add additional strain to the engine. Still, despite the rumored issues with the TRD supercharger kit, we’ve heard of very few reliability issues when running a low-boost setup.

2UZ-FE Engine Swaps

Although the 1UZ-FE is the popular choice when it comes to engine swaps, many have opted for the 2UZ-FE as their motor of choice, and it certainly hasn’t disappointed.

Are you considering fitting a 2UZ-FE into your old school Toyota? Make sure you check out this epic old-school-cool 1971 Toyota Celica twin-turbo swap ripping on the dyno!

If you’re considering a 2UZ for something more modern, here’s something that’s bound to upset the 1JZ & 2JZ fanboys.

SUPRA POWER.. Wait.. What?!

Could this be the perfect match? Time for 2UZ-powered Toyota Altezza skids.

Here’s another old-school swap, this time with a 2UZ in a Corolla. We love the way this thing shreds tires so effortlessly!

What better way to end our engine swaps section than with a 1,000 twin-turbo MKIV Supra throwing it down sideways and pouring out huge smoke clouds over Europe?

Conclusion

Due to its added weight and lower horsepower output compared to its younger brother, the 2UZ-FE often gets left behind in the shadows.

Despite the fact it could do with going on a crash diet, the 2UZ is still an impressive engine that should be a serious consideration for many enthusiasts, especially those opting for a big power build.

When it comes to reliability, the 2UZ is up there with the very best, and if you’re willing to invest some cash into building a high-horsepower setup, then we do not doubt that the block will be good for going way beyond the 1,000-horsepower bracket.

Sure, its podginess makes it more ideal for trucks and SUVs, as Toyota intended, but as the videos above prove, it certainly has plenty of potentials, and thanks to the lack of interest, it should be easy enough to find one for a bargain.

Suppose you’re considering a car with a 2UZ already fitted. As long as the servicing and maintenance have been carried out at the correct intervals, we’d expect to see the 2UZ go way beyond 300,000 miles.

If you’re not entirely sold on the 2UZ-FE idea, then make sure you check out our other engine guides, where we’ve broken down everything you need to know.

We explore the Toyota family with the 7M-GTE, 1MZ-FE, and 2GR-FE.

Willing to consider a Nissan engine? Why not check out the VH45DE.

So, there we have it! We hope that we’ve covered everything you could want to know about the Toyota 2UZ-FE in this guide.

Thank you for reading our 2UZFE guide.

If you enjoyed this article, please share it with the buttons at the bottom of your screen. If you’ve found this information useful, then please take a moment to share it with other Toyota enthusiasts. We appreciate your support.

Photography credits

We thank the following entities for the use of their photography in this article:

• FitFreak
• Bill Wilson on Flickr
• Calvin Kim on Flickr
• Calvin Kim on Flickr

The post Toyota 2UZFE – Everything You Need To Know first appeared on Drifted.com.

Intro

Toyota is one of the biggest names in the automotive industry, with the company developing its first engine way back in 1934. We need not say more because the company’s name is enough for its reputation in the market. Plus, Toyota sells around 10 million cars worldwide in a year!

Having produced quite a few of the best sports cars from Japan, aka the 2000GT, the Celica, and the Supra, Toyota has made a name for itself in the sports car market.

The 2JZ-GTE, which sits in the heart of the Supra, is one of the best inline-six out of Japan and easily tunable to 500+ Hp on stock internals.

While all these cars are 2/4 door, sports model, and have a small yet powerful engine, one engine that’s often forgotten is the 1GZ-FE; a monstrous 5.0 liter V12, which is the only V12 from Japan to date.

The massive engine was fitted to the JDM Toyota Century, a car that debuted in 1967. The first model of the Century did not have the V12 – instead, it came with a series of Toyota engines; the 3V, 4V, 4V-E, and 5V-E. One Toyota engine that would have been great a match for the Century would be the 1UZ-FE – another great engine you could be considering for your next build.

It was the second generation of the Century (the G50) that had the 5.0L V12 – an exclusive engine that is not found in any Lexus model.

This is because the Toyota Century was actually considered above Lexus quality. Rigorous engineering and development had gone into producing the Century, and everything was done by hand.

An initial price tag of $100,000 was put on the car, however, today, you can get the engine for around $3,500. The car came with the option of cruise control, and a direct ignition system

Inside The 1GZ-FE Engine

Toyota specifically engineered the 1GZ for smoothness, efficiency, and less vibration. Smoothness and lower vibration are achieved through a shorter delay between subsequent power strokes.

Since there are 12 cylinders, power strokes occur three times as frequently as those in a four-cylinder at any given RPM.

Efficiency, on other hand, is dominated by the use of slant-squish combustion chambers, iridium spark plugs, and Toyota’s Variable Valve Timing with intelligence (VVT-i). VVTI works with the intake cams which control fuel entry into cylinders.

The completely counterweighted, forged steel crankshaft was installed in the strengthened block, which had a 60-degree angle between the two banks and was secured in place by six-bolt mains.

The silky-smooth 1UZ-race-derived FE’s bottom end served as inspiration for the design of both the block and the crank.

While the pistons were built from an aluminum alloy, the conrods were asymmetric and made of forged steel.

The ECU is responsible for controlling the valve timing continuously to optimize torque, output, and fuel efficiency while lowering emissions. It is intricately tuned to give the best efficiency possible throughout the entire rev range.

While the V12 is not an ‘economical’ engine in absolute terms, it is in relative ones when you consider the power and torque it delivers, with a real-world average economy of 7.2 km/l given for the 2-tonne Century.

Important information for the 1GZ-FE is given below:

Total displacement (cc): 4,996

Number of cylinders: 60-degree V12

Bore x stroke (mm): 81.0 x 80.8

Combustion chamber design: Pent roof type

Compression ratio: 10.5:1 (97 octane or better recommended)

Fuel supply system: Electronic Fuel Injection (EFI)

Fuel Tank Capacity: 95 Liters

Valvetrain design: DOHC 4-valve; chain and gear drive links

Max. output (PS @ rpm): 280 @ 5,200

Max. torque (kg-m @ rpm): 49.0 @ 4,000

Firing Order of cylinders: 1-4-9-8-5-2-11-10-3-6-7-12

Spark plug type and gap: Denso Iridium SK16R11, 1.0-1.1 mm gap

Intake valve opening: -7 to 53 degrees (of movement)

Intake valve closing: 57 to -3 degrees

Exhaust valve opening: 41 degrees

Exhaust valve closing: 3 degrees

Oil viscosity and capacity: 5W-30 low viscosity oil. Capacity 8 liters

The 1GZ-FE has a forged steel crankshaft, alloyed cylinder heads, and two separate ECUs, for controlling the right and left banks of the V12. This allows the car to be running even on just 6 cylinders.

The 1GZ-FE has Toyota’s advanced mechanism system for controlling throttle motors. The throttle motors are connected to the throttle butterfly, which maintains an optimum throttle point continuously.

The Oil sump is made of steel and is of a pressed steel sump bowl design. We’re telling you the sump design beforehand because if you’re looking to swap your car with the 1GZ-FE, the sump is the first thing that gets in the way. You might even need to

Valve shims on the 1GZ-FE are designed to absolutely resist abrasion of any sort. This is achieved with the shim being coated with an extra hard titanium coating, which shows that Toyota used breakthrough engine materials when designing this V12.

1GZ-FE Tuning Potential

The 1GZ-FE is an underbuilt engine; that is to say that you’re going to have better power and torque results when you opt for replacing integral components. This will be discussed in detail, but let’s focus on engine ECU tuning in the first part.

Firstly, ECU tuning requires a lot of hard work. There are hundreds of different constraints that a tuner has to figure out, from programming throttle bodies to converter lock-up points and transmission shift points.

The air/fuel mixture is another thing that engine ECU tuning will optimize, and what this does is that it makes your car run ‘richer’. Torque pulls and high engine revs are going to sound a lot better, and power delivery will be pretty much constant throughout the entire rev range.

A fuel system upgrade with bigger injectors will also bump power figures up. Moving on, as we said at the start, you’re much better off with replacing engine internals, intake and exhaust manifolds, better EFI systems, and of course, that sweet twin-turbo upgrade.

Engine internals for the 1GZ-FE are available through third-party manufacturers in the USA. Performance manufacturers like Hartley Engines, Top End Performance, and VEP Racing, are all credible sources for forged pistons and connecting rods.

Hartley Engines manufacture the best pistons for the 1GZ-FE since they effectively optimize the dome of the piston head for turbo setups, which is essential when using turbos. We at Drifted know that without a turbo life can be pretty dull.

If you’re aiming for a 1000HP build, then a twin-turbo is definitely the way to go, and the stock internals will not be able to handle this massive amount of boost. The forged steel crank is definitely salvageable, but we’d say replace everything else, including valves.

The 1GZ-FE had an automatic transmission. Swapping this out for a manual will also increase the performance of the engine.

1GZ-FE Forced Induction

Forced induction on the 1GZ-FE will not be an easy job to pull off.

For starters, the engine is already way too big to be fitted in a small car, and after being fitted, it leaves very little space for a turbocharger to be fitted as well.

If you’re still planning to fit a turbo in there, you have to go for forged internals first, as we’ve mentioned above. Other engines like the 2JZ have forged internals from the factory, so adding a turbo is not going to be such a big deal as it would be on the 1GZ.

With that said, if you have the space for a turbocharger, and a set of forged internals, you’re ready to move to the second part of turbo-ing your 1GZ. Remember that turbos have different outlets on their housings.

These housings are of different sizes and have different-sized flanges which enables them to connect to the exhaust manifold. You need only match the flange size to the headers on your exhaust manifold.

There are a lot of different sizes of turbo’s that are available, for example, a T3, T4, T76, and so on. The turbo code necessarily specifies generic flange sizes, which are universal for all turbochargers and turbo pipings. GT3040s and T04z are two turbo options to consider.

Bolt-On Modifications

You will not find many parts that are a bolt-on fit on your V12, simply because the aftermarket support on this car is not that great. You will have to design a lot of parts yourself, but still, the following parts will be a bolt-on fit:

1) A Cold Air Intake

2) Headers

3) Cat-back exhaust

4) A Lightweight/underdrive crank pulley.

Again, these are very generic parts that will vary from car to car, but you’ll still find one that will fit snugly into your setup. You’re more likely to find these on eBay, than any other source.

1GZ-FE Reliability & Common Issues

When it comes to reliability, the 1GZ-FE is a very reliable engine, simply because the engine’s power output was kept low. This puts less strain on the engine. However, there are still some issues that need to be addressed.

First of all, the 1GZ-FE does not work properly if the ECUs are replaced. Notice that we say ECUs because the 1GZ used two ECUs to control each bank of cylinders. For proper functioning, you need to run the stock ECUs, otherwise tuning will take a lot of effort, as we’ve mentioned earlier.

A single ECU may also be used, but this may bring problems. For the stock ECU, since the engine was released way back in 1997, electrical problems arise, causing the engine to misfire.

The 1GZ-FE has wire-operated throttle bodies which are all independently controlled by the ECUs. This variable-length intake system was relatively new for the time and was not perfected for the 1GZ, which is why it idles at high RPMs.

If you switch to newer throttle bodies, the ECU will need to be replaced, and that leads us back to the original problem.

Electricals are not a strong point for the 1GZ-FE. Due to the less reliable and efficient technologies of the 1990s, the engine is well known to have had electrical issues in its early models.

However, upgrades for more contemporary electrical modules are available, which will make it far more dependable and long-lasting in terms of electronic systems.

Owners might also be familiar with issues related to power cuts to the engine. We assume it’s all due to problems with electronics, as well as a few small issues with spark plugs and other components. An accurate diagnosis will take care of the issue.

Another problem is that the 1GZ has high oil consumption which is one of the most prevalent problems for big engines released during this time period. Larger engines require more oil, and if the oil is not replaced timely, piston rings and valve seals will break.

All this is not something that is uncommon for engines.

1GZ-FE In Drifting

Drift builds usually feature an engine swap, with lots of torque, and lots of power. The 1GZ-FE is seemingly perfect for this, it boasts 12 cylinders which are more than enough for making a lot of power, and with the right car and a proper fender gap, a pro-drift car can easily be built.

It’s all about how the car actually comes to life while building it. A lot of trial and error is involved to create a good drifting car, and the 1GZ-FE is not shy of this. Purist drift enthusiasts often have an LS engine sitting at the heart of their car, but the V12 is definitely one step up.

This V12 Nissan Silvia is just one example of how well the 1GZ-FE fits into a drift build setup.

1GZ-FE Engine Swaps

We’ve seen a lot of cars with the V12 dropped in. One specific car that has gone viral on the internet is Smokey Nagata’s V12 Supra. Now Smokey had gone through a lot of trouble working on the car, which ended up making 1000+ hp.

Smokey’s work is all over the internet, and it has inspired other Supra owners to drop in the 1GZ-FE, and double their engine capacity. Complete billet engine setups are also available which are high-performance race variants based on the original design.

Hartley Performance manufactures these aluminum billet engines. The V12 1GZ by Hartley is capable of revving up to a screaming 10,000 rpm, which makes it fit for any supercar.

Other cars that have the 1GZ-FE installed

Coming back to daily drivers, we’ve seen the 1GZ-FE in a lot of cars. From Miatas to Silvias, and from IS300s to Land Cruisers, this V12 has made its way to the engine bays of many fanatics who have dreamt of having a V12 supercar.

We’ve also seen a Toyota Chaser, a Toyota 86, a Toyota Corona, and even an RX-8 with the 1GZ-FE swapped in.

Tired of the issues that come with Mazda’s rotary engines? “Simply” carry out an engine swap and fit yourself a 1GZ-FE – problem solved, ha!

Which Cars Have The 1GZ-FE?

The Century had become the preferred mode of transportation for members of the Japanese imperial household, business officials, and other powerful people of the country. It was the epitome of Japanese culture and engineering prowess. After 30 years of continual improvement, it underwent its first significant makeover in 1997.

At that point, Toyota had established itself as one of the leading brands in the automobile sector, and no money was spared in the creation of a new Century. It did not have the grand appearance of a Maybach or Rolls-Royce. But it was just as flawless, cozy, and sophisticated.

This second-gen Century featured the 1GZ-FE, and no other car from Japan would have a V12 in it.

Applications of the 1GZ-FE engine:

• 1997 – 2016 Toyota Century
• 2006 – 2008 Toyota Century Royal

Conclusion

Given that the production numbers of the Toyota 1GZ-FE are nearly identical to those of the majority of straight-four or six engines we face every day, it is still a difficult engine to find.

Its ability to support the vehicle if anything goes wrong inside the hood, or as we say, a backup plan, is primarily what gives it its attractiveness to the community and industry.

It also requires less maintenance because the suggested oil for the engine is a 5W-30, a high-viscosity oil that can last for up to 6,000 miles.

Additionally, the camshafts are operated by chains rather than belts, saving you from having to replace them periodically. The engine’s technologies are likewise cutting-edge and thoroughly thought out.

Although the 1GZ-FE engine has some difficulties and may develop more as it is an old engine and is not getting any younger, replacing any necessary parts will greatly extend the engine’s useful life.

The post Ultimate Toyota 1GZ-FE Engine Guide first appeared on Drifted.com.

• Which Cars Have The RB20DET Engine?
• Nissan RB20DET Engine Specifications & Variations
• Nissan RB20DET Tuning & Upgrades
• RB20DET vs SR20DET & RB25DET
• Nissan RB20DET Engine Swaps
• Nissan RB20DET Reliability & Common Issues
• Conclusion

Introduction

We’ve explored many of the most predominant engines used in the drift scene to date, but since the original RB engine, the RB20DET, has been left out until now, it’s time to take a deep dive into what the grandfather of the RB family has to offer.

Unless you’re entirely new to drifting, we’re willing to bet that you’ve heard people raving about the RB engines from Nissan, which have become one of the most popular engines over the years.

Their desirability is partly thanks to their eargasm-inducing sounds, alongside the ridiculous power potential.

Although the RB20DET is the smallest engine of the turbocharged RB-series, it’s still highly sought after, and undoubtedly has a lot to offer.

It can be challenging to choose the perfect candidate for your engine swap, so we’ve created this guide to help you decide whether the RB20DET is going to be the ideal choice for your needs.

The RB20E was the first RB to hit the market, which was the successor to the outdated Nissan L20 engine.

Between the 1985-2004 model years, Nissan produced several variations of the RB engine, which later went on to increase in capacity from the original 2.0L RB20 to the 3.0L RB30, with stroker kits eventually providing 3.4L upgrades.

For this guide, we’ll be sticking with the first-ever turbocharged model in the family, the RB20DET.

The RB20DET initially launched in the Nissan HR31 Skyline and the Fairlady 200ZR, which began production in 1985.

It later went on to be included in various other cars, such as the Laurel, Cefiro, and the Skyline BNR32.

In stock form, the turbocharged RB20DET utilized up to 10 psi of boost pressure (model dependent) to achieve up to 212 hp.

However, there was plenty of power potential left lying in wait from the factory, which we’ll take an in-depth look at later in this guide.

Although the RB20DET isn’t often the most glorified RB engine, it’s best known for being the cheapest option alongside being exceptionally rev-friendly when it comes to drifting and produces that delightful straight-six RB-sound that we know and love.

There aren’t many alternatives in a similar price bracket that have the tuning potential and an 8,000rpm redline to compete with the RB20DET for the price, which is what makes it a fantastic proposition to consider.

Sure, the RB26DETT is the dream RB engine, but with the likes of the Skyline R34 being illegal in the US, and the rarity/cost factor of the RB26, it’s certainly worthwhile to consider the far cheaper alternatives.

Which Cars Have The RB20DET Engine?

The RB20DET was a popular choice between the mid-to-late 90s, and it soon found its way under the hood of various Nissan models.

• Nissan Skyline HR31
• Nissan Skyline R32
• Nissan Fairlady 200ZR
• Nissan Stagea
• Nissan Cefiro
• Nissan Crew
• Nissan Laurel

Nissan RB20DET Engine Specifications & Variations

The RB20DET’s design builds on its predecessor, the L20A engine, keeping the same stroke and bore of the original.

But, that’s where the similarities between the two end, as Nissan went on to upgrade the pistons, connecting rods, camshaft, cylinder head gasket, and the ECU, with the compression ratio reduced to 8.5:1.

With a displacement of 1,998 centimeters and an inline six-cylinder configuration, a Garrett ball-bearing T28 turbocharger combined with a T3 exhaust manifold enabled up to 10 PSI.

There were two main variations of the RB20DET produced, the red top and the silver top; although the red top is rare to find in the states, it features in pre-1988 engines in Australia and New Zealand.

Replacements between the two variants were a new cylinder head, an uprated turbocharger, pistons, connecting rods, camshafts, and also an updated cylinder head gasket.

The red top was only capable of producing up to 190 hp, so it’s typically the less desirable choice of the two options.

Nissan RB20DET specifications:

• Cylinder block: Cast-iron
• Cylinder head: Cast-iron
• Configuration: Inline straight-six
• Valvetrain: DOHC (4 valves)
• Piston stroke: 69.7mm (2.74″)
• Cylinder bore: 78mm (3.07″)
• Compression ratio: 8.5:1
• Displacement: 2.0L (1,998 cc)
• Stock power: 212 bhp (at 6,400 rpm)
• Stock torque: 195lb/ft (at 3,200 rpm)
• Weight: 245kg (540lb)
• Stock turbo: Garrett T28 w/ T3 flange
• Maximum tuning potential (with extensive modifications): 450+ hp

We’ve written a separate guide where we take a deeper dive into the RB20DET engine specifications.

In total, Nissan went on to produce seven different models of the RB20-family:

• RB20E
• RB20ET
• RB20DE
• RB20DET
• RB20P
• RB20DET-R
• RB20DE NEO

Nissan RB20DET Tuning & Upgrades

One of the main benefits of the RB20DET is the potential tuning capabilities that it has to offer.

Sure, it’s not going to break any records in stock form, but let’s face it, who opts for an RB engine to keep it stock?

When fully tuned, we’ve seen the RB20DET frequently reach up to 400bhp, with several others claiming to have achieved up to 450bhp, which we expect to be the limit on stock internals at around 1.2 bar of boost.

One of the main downsides of the RB20DET that you’ll soon realize is that it somewhat lacks torque compared to some of its rivals at around the 4,500rpm range.

Most tuning enthusiasts overcome this with the usual supporting mods, alongside a larger turbo and uprated camshafts, which help to eliminate the issue with low-end torque.

If you’re looking for a cheaper alternative, then a camshaft upgrade on the stock turbo can also be a consideration.

Although some engines such as the 2JZ-GE are capable of being N/A-T’d by simply bolting on a turbo and expecting the same results, this isn’t the case with the naturally-aspirated RB20 engines.

For that reason, if you’re planning on a turbocharged RB, then you’ll make life far easier by opting for the DET engines from the very start rather than trying to upgrade them later.

There are a lot of different ways that you can go about reaching the tuning potential of the RB20DET, but as always, it’s crucial to start with a healthy base engine, especially for drifting or significant power goals.

The obvious start to tuning any engine is to have it breathing to its full potential, which means starting with simple bolt-on mods, such as a cold air intake, along with upgrading the exhaust system, along with the headers/manifold if you’re chasing decent power.

We’d usually opt for the typical 2.5-3” diameter exhaust, which is the usual size for a free-flowing aftermarket exhaust, and there’ll be plenty of choices on the market for most models.

Installing these will eliminate most of the restrictions within the stock setup, enabling a nice, free-flowing exhaust, alongside getting the RB’s vocal cords flowing a little better.

From there, you can increase the airflow into the engine with an aftermarket front-mount intercooler. Other convenient upgrades include injectors, MAF, an uprated fuel pump, and a boost controller.

Once you reach this point, you should be achieving around 320-330bhp.

We’d recommend having your boost controller set up by a reputable tuner or taking a look at aftermarket or piggyback ECU options if you’re planning on going further in the quest for additional power.

From there, it’s time to consider upgrading the T28 turbo, which is where you’ll be able to unlock the true potential and continue venturing towards the 400-450bhp benchmark.

There are several options to consider when it comes to optimal turbos for the RB20DET, and if you’d like to stick with a simple setup, then the manufacturers of the stock turbo, Garrett, offer options such as the GT2860RS.

Alternatively, there’s the HKS GT-RS Turbo, which is capable of around 350hp on a quick-spool, responsive setup, which would be perfect for street use.

If you’re looking for immense power gains, then the Garrett GT3071R is an excellent match for the RB20DET.

Given the engine’s lack of low-down torque, a laggy turbo isn’t going to be an ideal combination, and with the GT3071R rated to up to 480hp, it’ll be a perfect option to reach over 400hp.

Although it can be tempting to crank up the boost as much as possible, we don’t recommend going over 0.8 bar (11.5 psi) on stock internals, but with a forged setup, some have managed to exceed 1.2 bar (approx. 17.5 psi.)

Of course, the higher you go on boost, the more you’re risking the reliability of the engine.

Once you’ve decided on a turbo, you’ll need to look at multi-layer steel head gaskets, uprated head studs, and uprated camshafts. We highly recommend the TOMEI PROCAM upgrade.

There’s also the option to go with an aftermarket oil pump, connecting rods, pistons, valve spring kits, and a ported and polished head.

If you’ve opted to go full-retard with a 400hp+ setup, but you’re suffering from turbo lag, it’s time to consider increasing the displacement, which you can grow to up to 2.4L with a forged 2.4L RB24 stroker kit.

Unfortunately, by this point, you’ll need to be prepared to have your pockets leaking like a sieve. So, be warned, as you may end up wishing that you’d opted for an alternative swap from the start.

RB20DET vs SR20DET & RB25DET

When it comes to considering which engine is going to be best suited for your needs, especially for drifting, the SR20DET and the RB25DET are typically two of the primary considerations.

It’s not fair to stack these against the tuning giants such as the RB26DETT, and Toyota’s 2JZ, as they’re in an entirely different league.

RB20DET vs. SR20DET

We’ve put these engines head-to-head in our comprehensive RB20DET vs. SR20DET head-to-head battle.

Despite their four (SR20) vs. six (RB20) cylinder differences, these equal-displacement engines are similar power when stock, and often divide opinions as to which is best, especially when it comes to drifting.

The SR20DET is typically the most common choice, mostly thanks to its popularity in Japan, where it earned a cult following, featuring in a considerable number of Nissan’s production cars.

The SR20DET is hugely popular among S-chassis owners, namely 240SX, in the US that are looking for a convenient KA24DE upgrade, where demand has sent its price soaring in recent years.

On the other hand, the RB20 is likely to be a much cheaper choice, and also has the added benefit of (arguably) being the better sounding engine of the two.

When it comes to spares and upgrades, the SR20DET is going to be the more convenient option, thanks to its popularity, with a massive array of new and aftermarket parts available.

With the RB20DET’s cast-iron block, it weighs a significant amount more than the SR20DET, and the SR20DET is also easier to extract larger horsepower figures thanks to its superior internals.

Both engines are likely to top out at around 400hp before you’ll have to start throwing significant cash to achieve bigger gains, which is where you’re likely to be better off looking at other alternatives.

Two of the main reasons we’d opt for the RB20DET over the SR20DET are that they’re cheap, and they sound epic.

On that note, we present our next, slightly more unfair comparison.

RB20DET vs. RB25DET

Tuning enthusiasts that have spent big bucks trying to go beyond the 400hp barrier on the RB20DET, and perhaps the SR20DET, have often wished they’d made the RB25DET consideration from the start.

The RB25DET replaced the RB20DET engine from 1993, and the upgraded RB25DET included a new variable intake cam system that resolved the issue with the RB20’s lack of torque in the lower rev-range.

Thanks to its larger displacement, it’s far easier to achieve the 400hp mark with the RB25DET, and many have surpassed 500hp.

You then have the option to consider an RB26DETT head, with a stroker kit that’s capable of taking the displacement to 2.8 or 2.9L.

Although the RB25DET isn’t necessary for everyone, it’s an ideal choice for those that have substantial power goals, and although it’ll be more expensive than the RB20DET, it’s likely to end up being more beneficial in the long run.

Nissan RB20DET Engine Swaps

Since the RB20DET can often provide excellent value for money as an engine swap, enthusiasts across the world have jumped at the opportunity to replace their disappointing OEM engines with the RB20.

One of the most common swaps is for the 240SX, where most owners are keen to get rid of the lackluster KA24DE engine that the USDM models received.

So much so that there are various off-the-shelf conversion parts available, such as 240SX RB20 steel and aluminium driveshafts and RB swap mounts.

Alongside the RB20DET, the CA18DET and SR20DET are two popular alternative upgrade considerations for 240SX owners.

Are you considering an RB swap on your 240SX? You’ll want to check out this video:

The 240SX isn’t the only popular Nissan choice for the swap either, with the 240Z and 280Z also being popular choices.

It doesn’t stop there either, with Miata owners always keen to cause an upset, they’ve taken advantage of the RB20’s opportunities.

And it’s even an ideal choice when it comes to old-school JDM Toyota’s, too:

And it’s even found its way into some less-likely European drift cars:

Put it this way, we’ve seen the RB20DET swapped into just about everything, from Volvo’s to Ford pick-ups.

So, if you’re wondering whether it’s the ideal swap for your ride, take a look at YouTube or Google; the chances are that someone may have already fitted an RB into the chassis in question and may be able to offer some helpful advice.

Nissan RB20DET Reliability & Common Issues

With the correct regular service and maintenance, and minimal modification, the RB20DET is a testament to the reliability of the JDM engines of its generation.

Given its age, it’s not surprising that it has a couple of minor potential issues, as with any other engine out there, but they’re no real cause for concern.

Firstly, the most common issue lies with the ignition coils.

Many have had misfires, or their car has failed to start at all, caused by worn ignition coils.

If you’ve got related issues, the first port of call is to check the plugs. If they look okay, then turn your attention to the coil packs.

Once swapped, if the issue changes in some way, then you’ve likely found the culprit.

Given the heat that comes from turbocharged engines, this isn’t uncommon, and thankfully, failing coil packs are easy to source and replace.

If you wish to be on the safe side, Nissan recommends changing them every 60,000 miles (100,000km).

If maintained correctly and bounced off the limiter every drive and pushed to 400hp, you can expect to achieve over 250,000 miles from your RB20DET with minimal issues.

It is worth remembering that since the RB20DET is now rather old, and not as common as some of the other options out there, it can sometimes be a little more challenging to find used/new spares.

Conclusion

There’s a huge selection of engines out there to choose from when it comes to deciding on the perfect candidate for choosing your next car or engine swap.

Although the RB20DET isn’t the most incredible engine on the planet, it still ticks many of the right boxes for those who are after some reasonably-priced fun.

In our opinion, it’s superior to CA18DET, capable of matching the SR20DET, and even a worthwhile consideration against the RB25DET with reasonable power targets in mind.

For those of you with goals beyond 400hp, you’ll most likely be better off starting with a more substantial base engine that won’t need such extensive modification to reach your goals.

Although the initial outlay will likely be higher, we’re willing to bet it’ll be the better choice in the long run.

Its six-cylinder soundtrack is likely to provide the perfect harmony for your ears, and it’ll be capable of putting a massive smile on your face when you head to the track or the twisties.

Although some enthusiasts will claim that they’re overweight, lack torque, and don’t have enough power, you can’t keep everyone happy.

So, use your personal feelings to decide whether RB20DET is the right choice for you, rather than worrying about other people’s opinions.

Personalization is the beauty of the tuning scene. If it ticks the right boxes for your needs, then we’re sure the RB20DET won’t leave you disappointed.

We hope that we’ve covered everything you could want to know about Nissan’s RB20DET in this guide.

Thank you for reading our Nissan RB20DET guide.

If you enjoyed this article, then please share it with the buttons at the side and bottom of your screen. If you’ve found this information useful, then please take a moment to share it with other Nissan and RB enthusiasts. We appreciate your support.

Photography credits

We thank the following entities for the use of their photography in this article:

• Opron on Flickr
• Wikimedia Commons
• Serjio Zenkov on Flickr
• paulStarPics on Flickr
• Andrew Smith on Flickr
• Nicholas How on Flickr

The post Ultimate Nissan RB20DET Engine Guide first appeared on Drifted.com.

• Introduction
• History & Specs
• Which Cars Have The LT1 Engine?
• Tuning & Upgrade Potential
• Reliability & Common Issues
• LT1 Engine Swaps
• Conclusion

Introduction to the LT1 engine

For many years, GM’s Gen II LT1 has offered the perfect solution for tuners on a budget looking for a cost-effective V8.

With the 1992-97 5.7L considered to be one of the last “true” small block Chevy engines, the newer Gen V has instantly become a modern-day masterpiece, which will undoubtedly soar in popularity as time progresses.

Although the earlier LT1 was overshadowed by the immensely popular LS1, it’ll undoubtedly appeal to those looking for a bargain swap or build.

Easily sourced from wrecking yards across the US, the Gen II LT1 provides a reasonable amount of power in stock form and has excellent power potential lying in wait for those willing to spend a few bucks unlocking its potential.

With LS prices continuing to climb, the Gen II LT1 provides an excellent, conveniently sourced alternative.

For those with a larger budget, the latest 6.2-liter Gen V LT1 is understandably going to be a real temptation, providing the highest output to date in the base-level Corvette models.

With tuners beginning to push the boundaries and more parts than ever flooding the market, the LT1’s future continues to look exciting.

In this guide, we’ll take a look at everything you could need to know about these two modern V8’s, and we’ll also take a look at the first generation in the LT family – the LT-1.

LT1 Engine History & Specs

Things can get a little bit confusing when planning an LT1 build, as GM provided three engines designated as the ‘LT1′.

Gen I LT-1

For its time, GM’s ‘Mighty Mouse’ small-block V8 was revolutionary, immediately capturing motorsports enthusiasts’ attention when it arrived in 1955, featuring in the bay of the Chevy Corvette and Bel Air.

The Mighty Mouse crammed a tremendous amount of power into a small package for the first time, making it the perfect solution for a wide variety of purposes, and became the ideal candidate for a dragster engine swap.

After receiving raving success on the market, GM opted to release a newly-revised Gen II of their small-block range in 1970 – the LT-1.

Engine Specs – 1970-72 – LT-1 Gen I, 5.7L small-block

• Displacement: 5.7 L (5,733 cc)
• Compression ratio: 11:1:1 and 9.0:1
• Horsepower: 353 hp at 5,600 rpm
• Torque: 392 lb/ft at 4,100 rpm

There are several different claims regarding power, but after reading many ‘gross hp’ arguments online, we decided to settle with the Super Chevy dyno test of the two engines.

With the initial 1970-72 engines, power output was supposedly 370 hp for the Corvette and 360 hp for the Camaro, although there are no listed differences between them.

In 1971, the LT1’s compression ratio decreased to 9.01: with an output of 330 hp for the Corvette and Camaro, with a net horsepower rating of 275 hp.

Once again, in 1972, this decreased, to a net horsepower of 255 hp, with no gross horsepower stated.

Other sites will claim 370 hp and 380 lb/ft torque, so the power figures seem to be a bit up in the air. Regardless, we’re sure that these 40-year-old engines would’ve lost a few horses along the way!

Regardless of precise numbers, pushing out around 350 hp from a small-block in the 1970s was an awe-inspiring feat.

Thankfully, they made life a little easier for the first-gen model in the lineup by naming this the ‘LT-1′, which helps differentiate the original block from its successors.

Gen II LT1 Engine

Chevrolet unveiled their brand new Corvette in 1991, paying testament to the former LT-1 engine with the LT1.

Engine Specs – 1991-97 – LT1 Gen II, 5.7L small-block

• Displacement: 5.7 L, 350 CI (5,733cc)
• Compression ratio: 10.4:1
• Horsepower: 350 hp
• Torque: 379 lb/ft

Further confusion surrounds the LT1 figures, but the Super Chevy dyno records showed that when put against the old-school LT-1, the newer revision fell very slightly short of its predecessor.

Many online sources claim various power figures, ranging from 275-350 hp from the multiple revisions and 325-379 lb/ft.

Although this may seem disappointing at an initial glance, it’s the potential that lies in wait that makes the LT1 350 the superior choice.

The newly-released engine used a reverse-flow cooling system, cooling the cylinder heads first. This change provided lower combustion chamber temperatures and significantly improved spark. These changes allowed the engine to run higher compression than the previous variant.

Several variations with different power outputs would later reach the market, all of which came with a cast-iron block.

Although most LT1 models came with cast-iron heads, the Corvette and Camaro LT1 engines used aluminium.

Corvette blocks also received four-bolt main caps, but others had two-bolt, which often makes the Corvette engines the most desirable for those significant power gains from their LT1, unsurprisingly making it the most challenging to source.

When the LT1 hit the market, GM went back to the drawing board for the next engine in their small-block range, as they prepared to cause shockwaves once again with the release of the LS1 engine.

Gen V LT1 Engine

Chevy’s Gen V LT1 is a modern-day masterpiece and the worthy successor to the highly-acclaimed LS engine.

Engine Specs – 2014-Present – LT1 Gen V, 6.2L small-block

• Displacement: 6.2 L, 376 CI
• Compression ratio: 11.5:1
• Horsepower: 460 hp
• Torque: 465 lb/ft

V8 fans worldwide rejoiced when GM announced another new small-block to the V8 lineup, which arrived in the 2014 C7 Chevy Corvette.

You’d think they may have had a new name for yet another groundbreaking method, but nope – they opted for the tried-and-tested LT1!

Despite borrowing the name of its small-block predecessors, that’s where the similarities end with this brand-new direct fuel injection design, which shoots fuel directly into the combustion chamber instead of the intake runner.

There are claims that GM had over 6-million hours of testing before the release of the Gen V LT1 to ensure that the engine met their various strict requirements.

Unlike the previous LT1’s, the Gen V was the first to use a lightweight aluminium block alongside a forged crankshaft and a six-bolt main and aluminium cylinder heads.

The LT1 had GM’s variable valve timing, known as Dual Equal Cam Phasing, which automatically advanced the camshaft timing, providing a smooth idle from the engine (assuming you don’t go fitting wild cams!) With the engine under load, the cam phasers adjust to optimize the valve timing for maximum output.

With 450 hp on tap in stock form, we feel that the latest LT1 is a worthy successor of the small-blocks that it replaced and an incredible feat of modern engineering.

An Exciting Future

Although many will be sad to see the end of the LS, the LT lives on to provide exciting prospects for the future of GM’s small-block V8 lineup.

The Gen V LT may not have achieved the same regard as the LS when tuning, but it’s still early days for this complex, modern design.

Even though big-power Gen V builds have are quickly surfacing online, you’ll need to have deep pockets if you’re looking to build one in the present day, which is why many tuners are still opting for either the Gen II LT1 or the LS.

For those you’ve got big bucks to splash on building a Gen V LS1, it’s worth noting that some Corvette versions came with a dry-sump system and that there’s also a crate engine available, both of which are worth considering.

If you’re interested to know more about the Gen V LT1, make sure you check out this fascinating video:

For those keen to see how GM built the Gen V – this fascinating insight will also be of interest:

We feel that the future is exciting for the LT1 once the initial tuning limitations have been resolved, and we can’t wait to see tuning houses pushing it to (and beyond) its limits!

As you can see, the two earlier engines had many similarities, but the Gen V is in a whole different league.

Which Cars Have The LT1 Engine?

The LT-1 and LT1 engines feature in various applications, from cop cars to high-performance sports cars.

If you’re looking to purchase an LT1, you’ll need to be looking for the following models:

Gen I LT-1 Applications:

• 1970-1972 Chevrolet Corvette
• 1970-1972 Chevrolet Camaro
• 1970 Chevrolet Nova Yenko Deuc

Gen II LT1 Applications:

• 1992-1996 Chevrolet Corvette C4
• 1993-1997 Chevrolet Camaro Z28, B4C, and SS
• 1993-1997 Pontiac Firebird Formula and Trans Am
• 1994-1996 Buick Roadmaster
• 1994-1996 Chevrolet Caprice
• 1994-1996 Chevrolet Caprice Police Package
• 1994-1996 Chevrolet Impala SS
• 1994-1996 Chevrolet Caprice Wagon
• 1994-1996 Buick Roadmaster Wagon
• 1994-1996 Cadillac Fleetwood

Gen V LT1 Applications:

• 2016-present Chevrolet Camaro SS
• 2014-present Chevrolet Corvette Stingray
• 2017-present Chevrolet Corvette Grand Sport

LT1 Engine Tuning & Upgrade Potential

When it comes to big-power tuning, many opt for the LS series, thanks to the impressive range of upgrades available on the market, but that certainly doesn’t mean that the LT1 doesn’t have a respectable amount of tuning potential.

If you’re considering tuning the old-school Gen I LT-1 engine; then you’re likely to have your work cut out, as parts will be hard to come by.

Gen V tuning could undoubtedly surpass the LS-series in the long run, but its eventual power boundaries are yet to be discovered.

With the convenience of enormous power gains from a turbo-powered LS1, it remains the most convenient bang-for-your-buck option for significant power gains at present.

Despite this, the LT1 Gen II remains the most viable choice for excellent gains on a budget and is often easily sourced in a yard with a bargain price tag.

If you’re hunting down a Gen II engine for power gains, then the Corvette variants are going to be your best bet, featuring aluminium heads alongside the four-bolt main bearing caps.

Once you’ve got your hands on an LT1, there’s a variety of options to consider.

LT1 Gen II Tuning

Depending on how much power you’re planning for your build, these stages will give a basic guideline of which upgrade you’ll need.

Stage 1 (additional 20-30 hp)

• Cold air intake
• Cat-back exhaust
• Fresh plugs & wires
• Electric water pump
• Underdrive pulleys
• Tune

Stage 2 (around 325 hp) – Alongside Stage 1 mods

• 58 mm throttle body
• MAF sensor
• Headers
• Rockers

Stage 3 (around 400 hp) – Alongside previous mods

• Ported LT1/LT4/aftermarket heads
• Manifold
• Cam

Stage 4 (around 500 hp) – Alongside previous mods

• Forged rods & crankshaft/stroker kit
• Nitrous/forced induction considerations

Stage 5 (500+ hp) – Alongside previous mods

• Fully forged & 383 stroker
• Nitrous/turbocharger

If you’re feeling brave enough to go to 500 hp and beyond, you will, of course, need to ensure you’ve got a healthy engine to start with, especially when you begin spraying nitrous and turbocharging.

Many have achieved 700 hp from the stock bottom end on the Gen II engines, but correct fueling is essential, with many blowing up in the 600 hp range due to incorrect fueling.

Adding the 383ci stroker kit alongside a turbocharger has been proven to provide 800 hp at around 14 lbs of boost.

Although supercharging is also a consideration, a turbocharged setup would undoubtedly be more exciting and provide more significant gains. If you’re thinking about a supercharger, we recommend taking a look at this video:

If you’re keen to see what can be achieved with a big enough budget on an LT1, make sure you check out this 7-second monster:

LT1 Gen V Tuning

Tuning options for Gen V engines are limited currently, but we’re expecting to see some drastic changes soon.

We’ve already seen some four-figure builds surfacing, and with crate engines available for around $8,000, we can’t wait to see what the future has in store.

We can’t wait to see this 1,400+ hp Gen V LT1 Pro Street engine running down the strip.

LT1 Engine Reliability & Common Issues

Although the Gen V LT1’s haven’t had much of a chance to be put to the test when it comes to long-term reliability, if it’s anything like the Gen II in that regard, then it’s sure to be impressive.

Many Gen II LT1’s have lasted beyond 300,000 miles with the correct maintenance and service.

Typical minor wear-and-tear items to consider are likely to be the water pump, coolant sensor, and gaskets that could be deteriorating with age.

With that said, the LT1 does have one common flaw, which is often the most considerable inconvenience for Gen II owners.

Optispark Issues

Optispark may well have worked perfectly during the testing procedures at GM’s convenient short-term test facilities, but when it came to long-term, real-world testing, it wasn’t as straightforward for the LT1.

Mounted low down on the front of the engine, the Opti gets exposed to the elements you’ll encounter daily. Whether it’s salt, mud, water, or general road grime, you can count on it to suck it up nicely.

Over time, combined with inadequate ventilation holes, a build-up of these elements leads to trapped moisture, followed by corrosion, which eventually becomes engine misfires and other nasties.

Alternatively, should you be unfortunate enough to experience a leak from the radiator hose, this could drench the Opti with coolant due to its inconvenient location.

With the Opti located behind the water pump, service and maintenance are far more inconvenient than a conventional distributor.

Not only is it inconvenient, but should you decide to go for a new Opti, you’re likely to have to fork out a substantial amount and then have to spend time getting to it. Chances are, if you’re looking to go OEM, the issue will reoccur eventually.

The most cost-effective solution is to avoid the dealership and opt for uprated aftermarket parts, which are readily available on the market.

There are DIY ‘quick fixes’, but as always, with difficult-to-reach places, we highly advise splashing the cash a little to ensure that the job gets done correctly, and you don’t have to frequently correct the same issue.

There’s no question that this was a significant design flaw on the LT1, which could have been avoided.

With the LS1, GM upgraded this system to coil packs to avoid these issues entirely, and the dreaded Optispark problems were eliminated.

LT1 Engine Swaps

Are you looking for some inspiration for your LT1 build? Here are some of our favorite LT1 swaps!

We’ve fallen in love with this twin-turbo LT1 1962 C2 Corvette that leaves some of the world’s finest supercars for dust.

Check out this unlikely battle of an LT1-powered S12 Silvia up against a 1UZ-powered AE86!

It’s not your everyday swap, but we can understand the appeal of swapping out a rotary for a V8.

Controversial! Check out this Nissan 240SX drift car throwing it down sideways.

The ultimate sleeper- we LOVE this unsuspecting Volvo 262C LT1 swap.

460 hp Gen V LT1 into a 1971 C10 truck? Check!

That’s not the only classic truck to get a Gen V swap. You’ll want to turn your speakers up for this one!

A Difficult Choice

GM may have made things a little confusing by giving three engines more or less the same name, but whichever one you’re considering going for, we’re sure you won’t regret it.

With the Gen II being the most commonly-found engine of the three, it often finds itself compared to the LS, which is understandable.

Admittedly, the LSx engines are going to be the better all-rounder when compared to the Gen II LT1, but with the ever-increasing price, you’re likely to have to fork out big bucks for a well-maintained LS.

On the other hand, Gen II LT1’s are easily sourced and exceptionally reasonably priced, which is why they’re the perfect solution for budget builds.

Conclusion

The downside with the LT1 is that the aftermarket tuning scene isn’t as sought-after as the LS, which can make finding spares and off-the-shelves upgrades a little more challenging, so that would be one of our primary considerations.

On the other hand, the Gen V LT1 is probably the fairer comparison to the LSx, and putting the two engines head-to-head in stock form, the Gen V LT1 would be a clear winner for us.

With that said, the LSx would be the clear winner when it comes to aftermarket support once again, with tuners still looking to conquer the Gen V LT1’s eventual possibilities.

Additionally, as builds of 1,400 hp and beyond begin to surface, who knows what the future has in store for the Gen V engine?

With several cars rolling out of the factory with the Gen V under the hood, as well as crate engines available from GM, we hope to see an abundance of Gen V engines hitting the marketplace and for tuners to unleash the true potential!

If you’re not sold on the LT1, why not check out some of the other bargain powerplant alternatives that we’ve explored?

We’ve taken a look at the 2UZFE, 2AZFE, 7M-GTE, and the 1MZ-FE.

If immense power is your goal, don’t forget about JDM options such as the 2JZ-GTE and RB26DETT!

So, there we have it! We hope that we’ve covered everything you could want to know about GM’s small-block LT1 V8 in this guide.

Thank you for reading our LT1 engine guide.

If you enjoyed this article, please share it with the buttons at the bottom of your screen. If you’ve found this information useful, then please take a moment to share it with other LT1 and V8 enthusiasts. We appreciate your support.

Photography credits

We thank the following entities for the use of their photography in this article:

• Sicnag on Flickr
• Jerry Edmundson on Flickr
• Abdullah AlBargan on Flickr
• nicholaspassarelli on Fitment Industries
• AJ.Vette on Fitment Industries
• z277wolfe on Fitment Industries
• wolfiethefoxx_ on Fitment Industries
• Hazetaa & By_bjork on Fitment Industries
• velgenwheels on Fitment Industries

The post Ultimate LT1 Engine Guide first appeared on Drifted.com.
